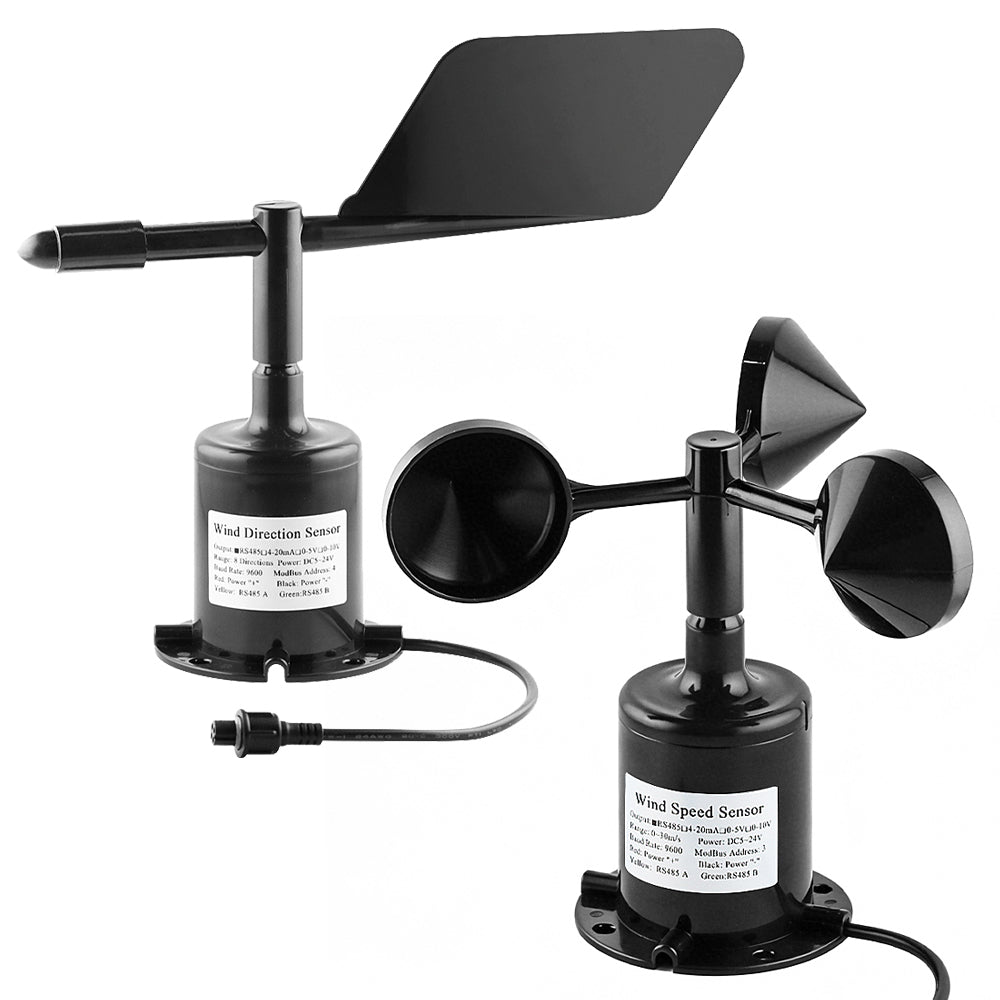

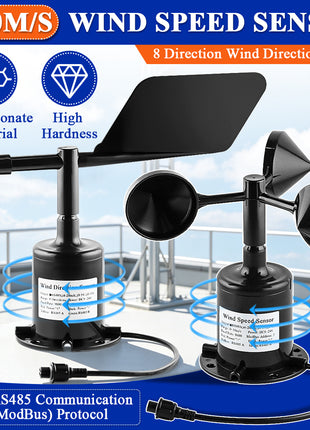

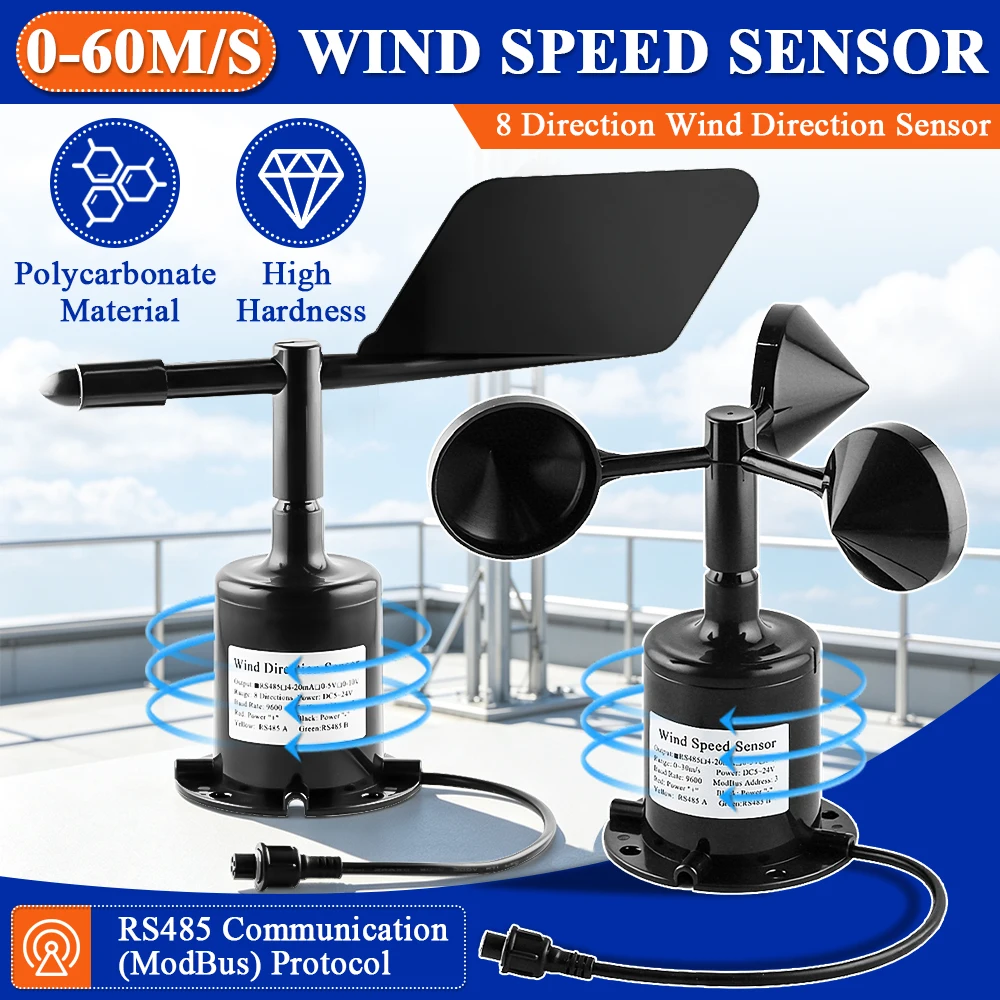

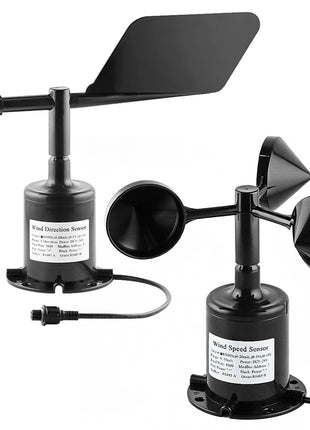

60m/s Weather Station Outdoor 3 Cup Anemometer Sensor Polycarbon Fiber Wind Speed Wind Direction Sensor Output RS485 4-20MA 0-5V
Overview

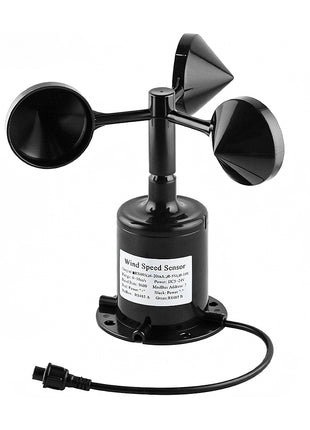

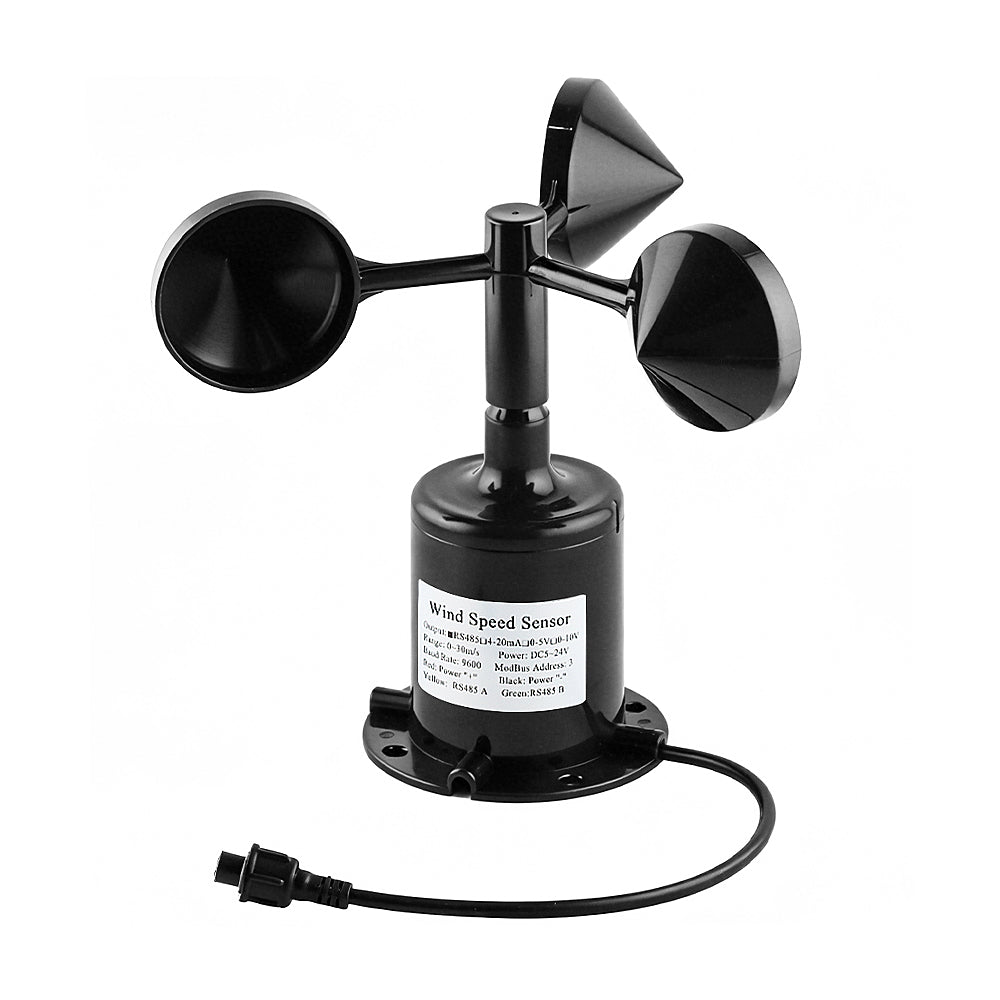

The three-cup wind speed sensor is a wind speed measuring instrument independently developed and produced by our company. The sensor shell is made of polycarbonate composite material, which has good anti-corrosion and anti-corrosion characteristics, it can ensure the long-term use of the sensor without the phenomenon of rust-cut, while cooperating with the internal smooth bearing system to ensure the collection of information. Internal integrated photoelectric conversion mechanism, industrial microcomputer processor, standard current generator, current driver and so on.
The PCB is made of military grade a material, which ensures the stability of measuring parameters and electrical performance, while the electronic component is made of imported industrial grade chips, which make the whole system highly reliable against electromagnetic interference, it can ensure that the main engine can work normally in the range of ー20 ° C ー70 ° C, humidity 5% ー95% Rh (no dewing) .
After the product upgrade, the output signal variety, wired output includes: analog signal (voltage, current) , digital signal RS485; wireless output includes: Lora, GPRS, 4G, wireless output in addition to Lora, other forms can be connected to the cloud platform, the intelligent terminal data monitoring and management.
Features
(1) the sensor has compact design and high measuring precision.
(2) fast response and good interchangeability.
(3) to realize low cost, low price and high performance.

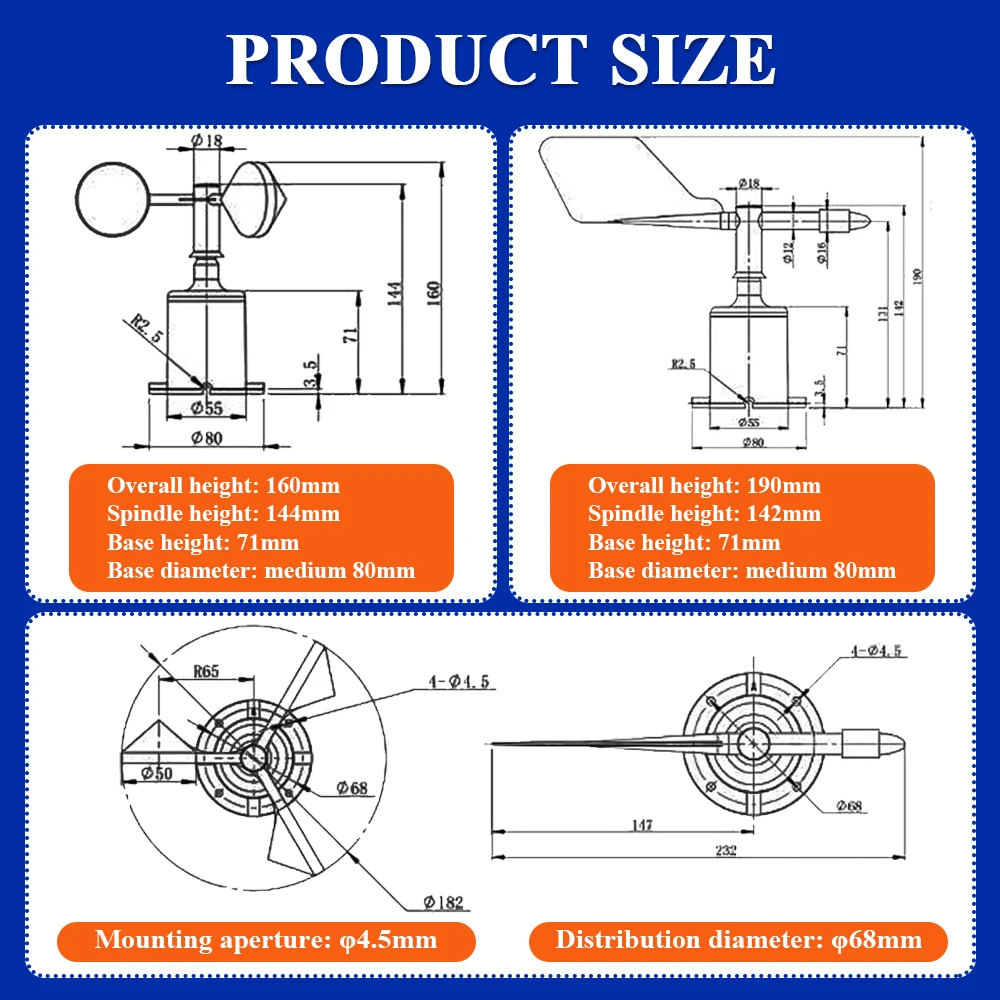

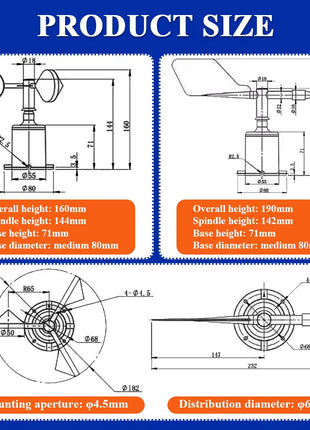

(4) the flange installation mode can realize the lower outlet line and the side outlet line, which is simple and convenient.
(5) the data transmission efficiency is high, the performance is reliable, guarantees the normal work.
(6) the power supply has wide application range, good linearity of data information and long signal transmission distance.
(7) with two parameters of wind speed and wind level, the data is reliable.
Scope of application

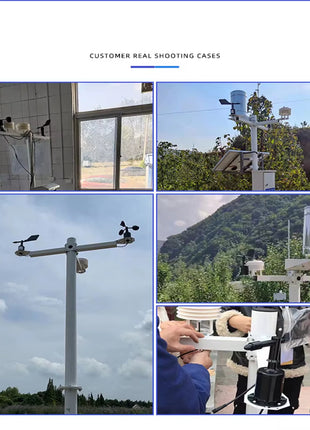

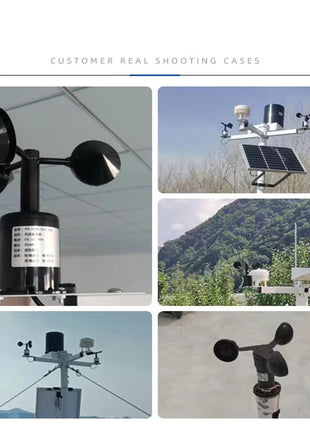

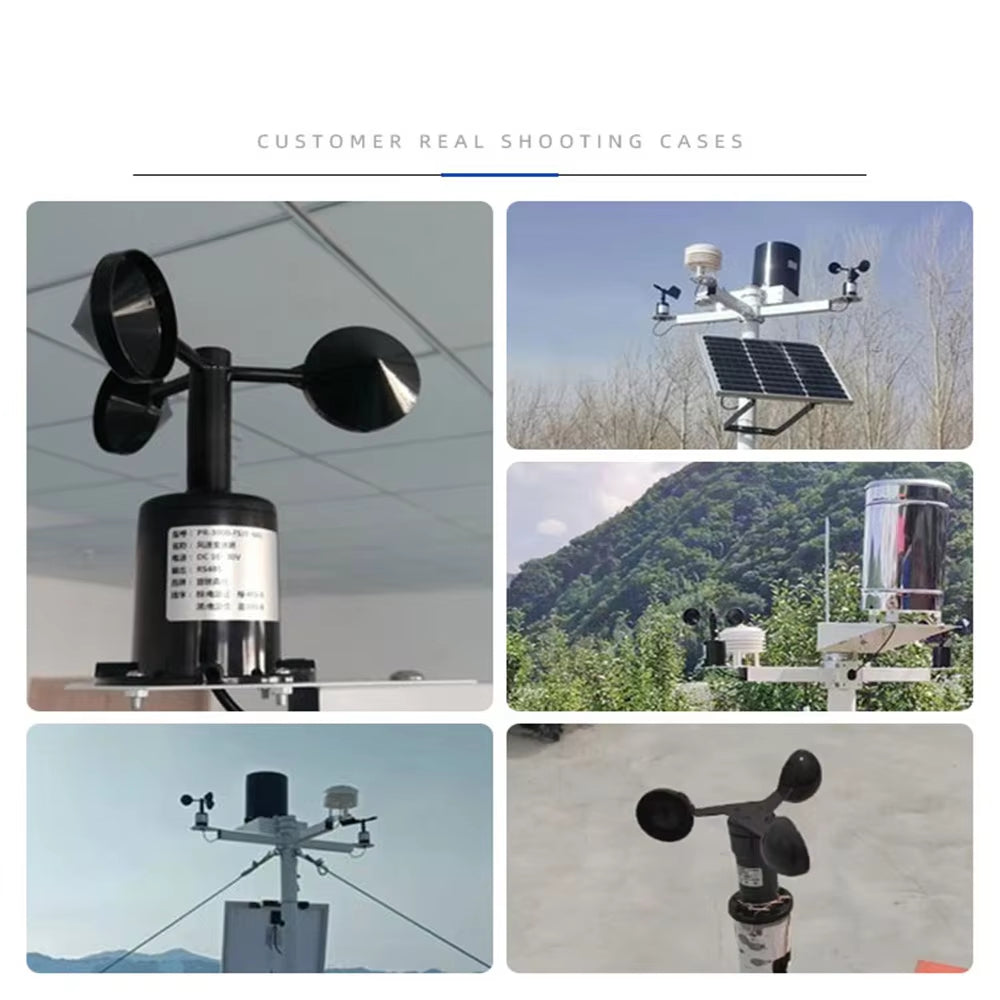

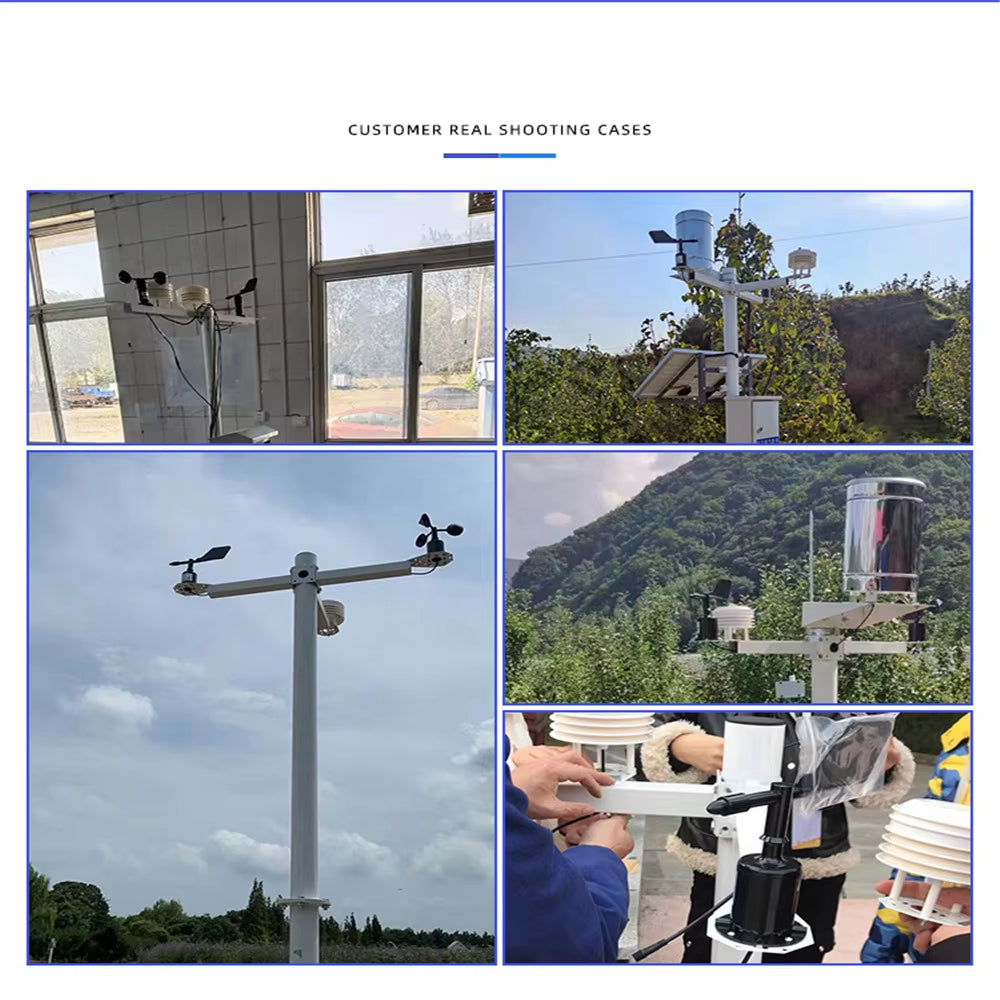

This product is widely used in greenhouse, environmental protection, weather stations, engineering machinery, ships, docks, aquaculture and other environmental wind speed measurement.

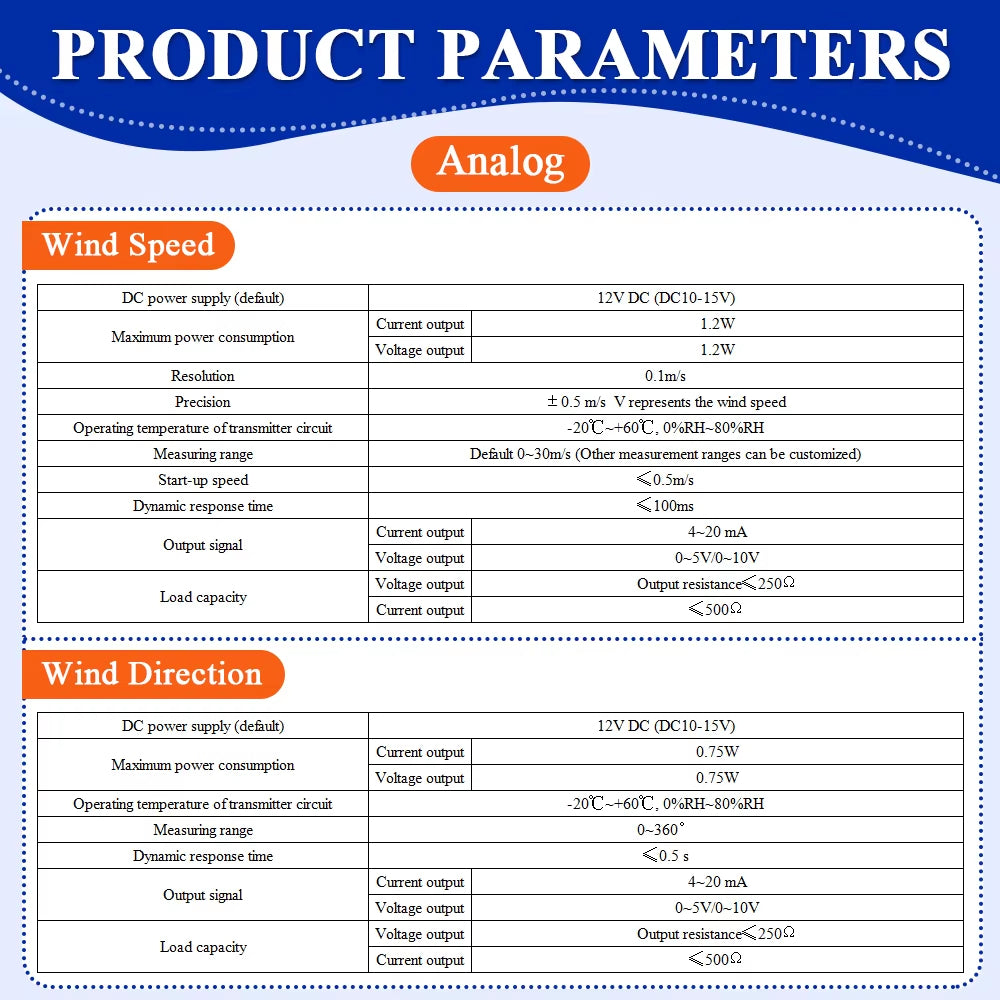

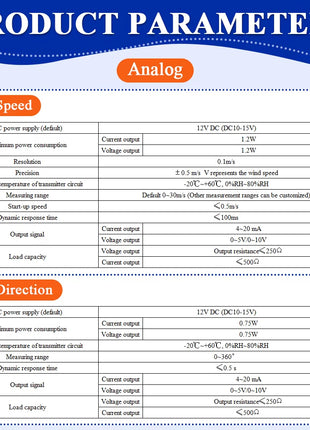

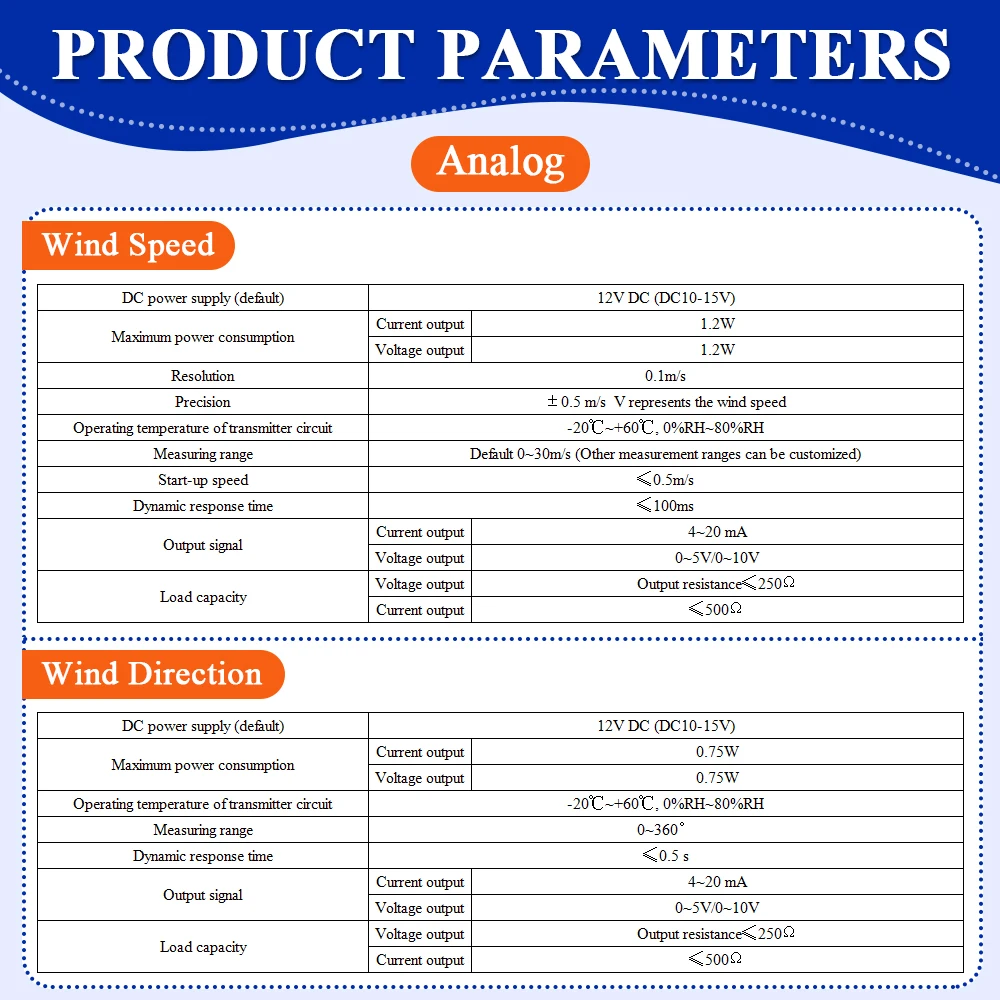

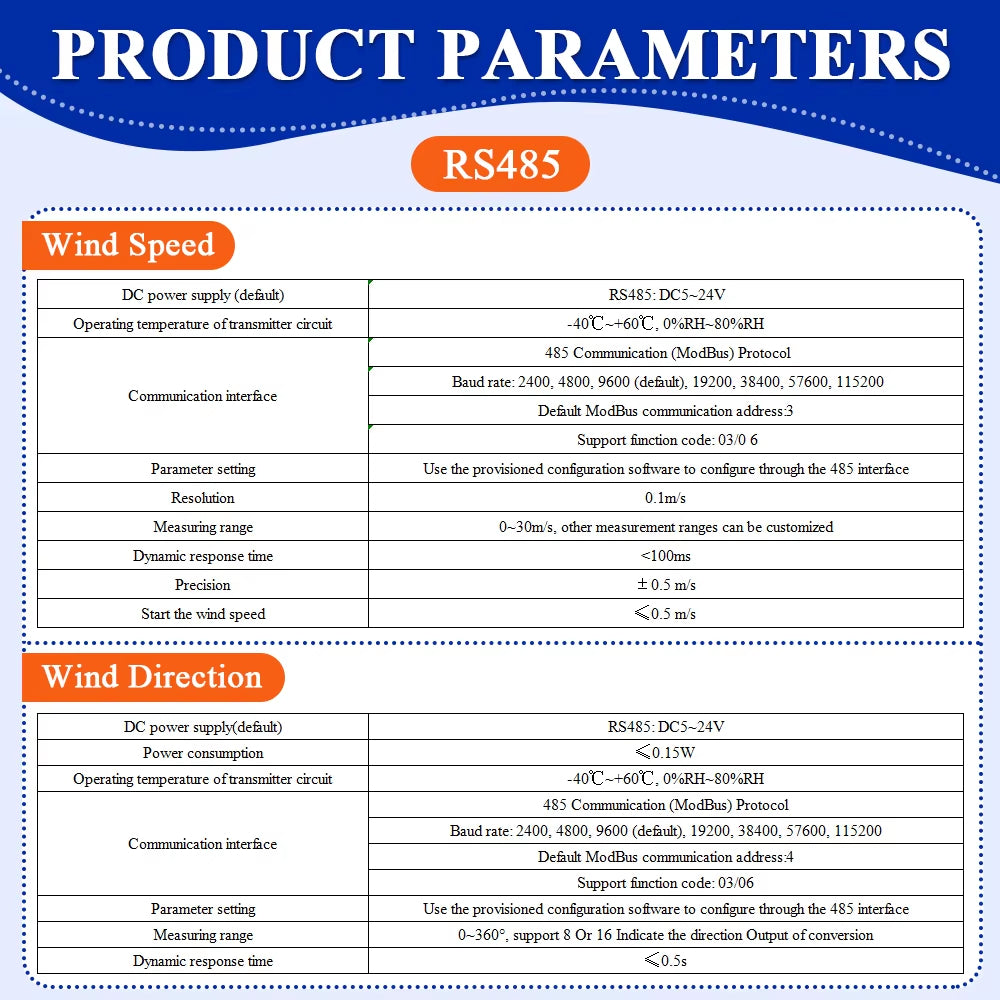

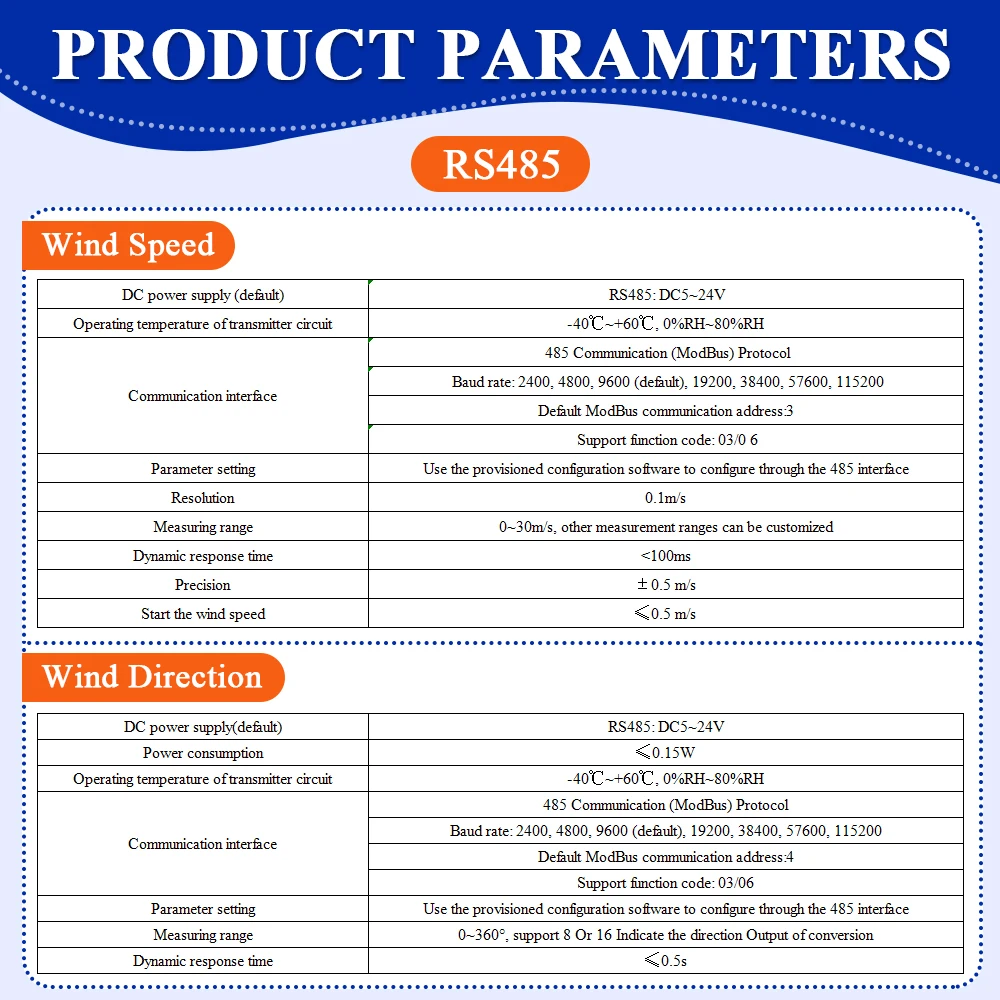

Product information
The measuring range: 0-30m/s, 0-50m/s, 0-60m/s
Starting wind speed: ≤0.3 m/s
Accuracy: ± (0.2 + 0.03 V) m/s
Output Signal: A: voltage signal (0-2v, 0-5v, 0-10V three choose one)
B: 4-20mA (current loop)

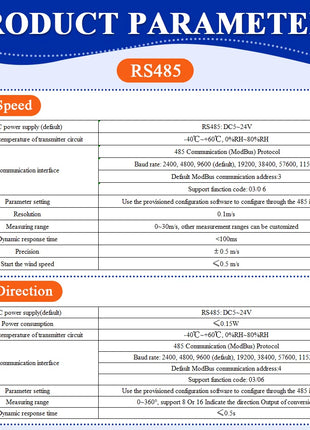

C: RS485(standard Modbus-RTU protocol, device default address: 01)
D: NPN, PNP, NPNR, GPRS, 4G, Lora output
Supply voltage: 10-30V DC
Stabilization Time: < 1 second
Response time: < 1 second
Working Temperature: ー20 ° C ー70 ° C
Working Humidity: ≤100% Rh
Storage Temperature: ー20 ° C ー70 ° C
Storage humidity: ≤100% Rh
Load capacity: voltage output: output resistance ≤250 ω; current output: ≤600 ω
