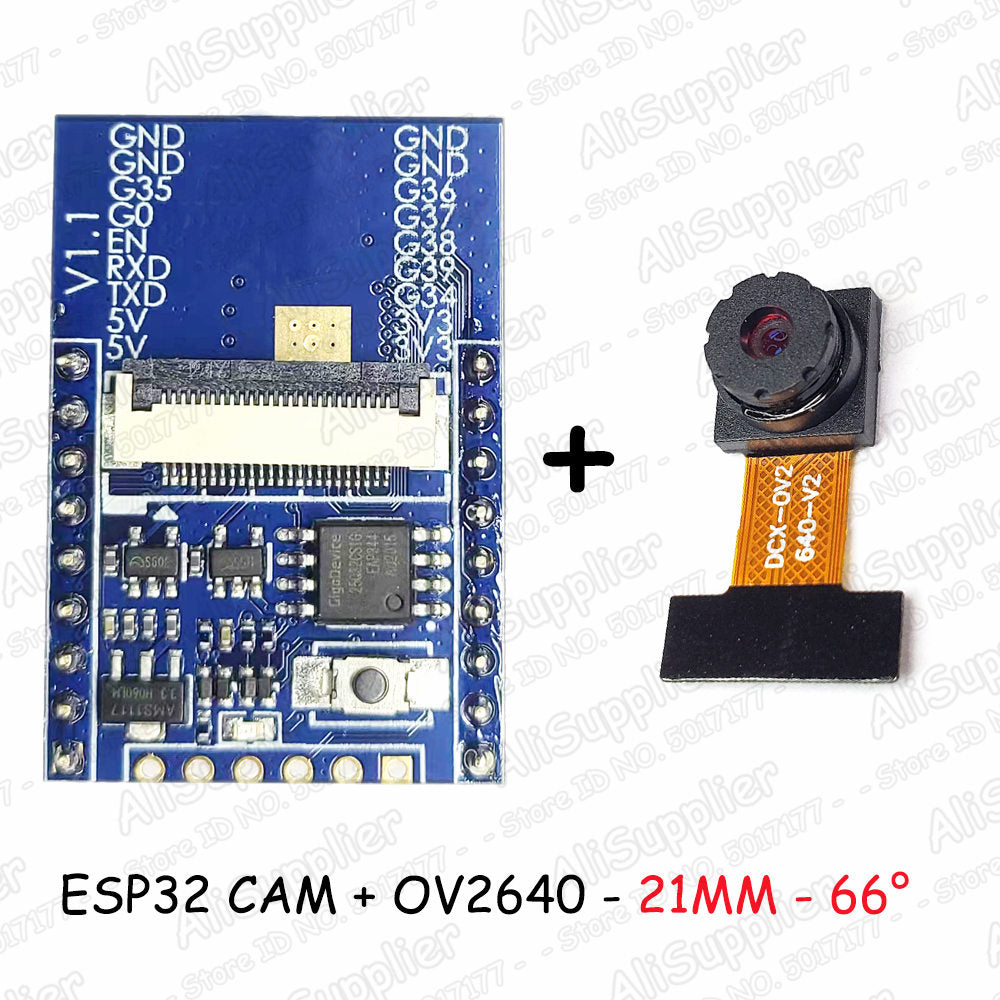

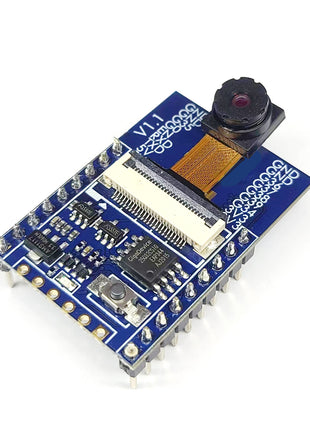

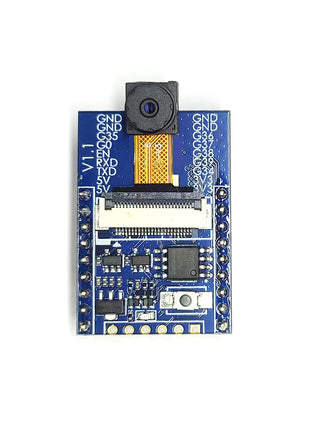

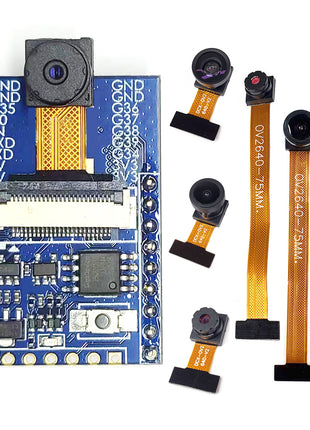

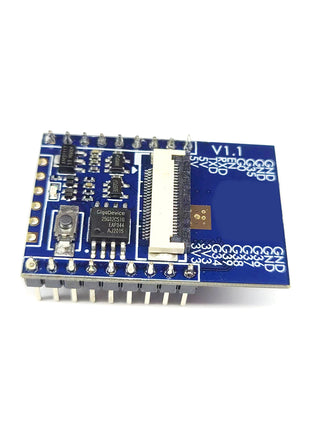

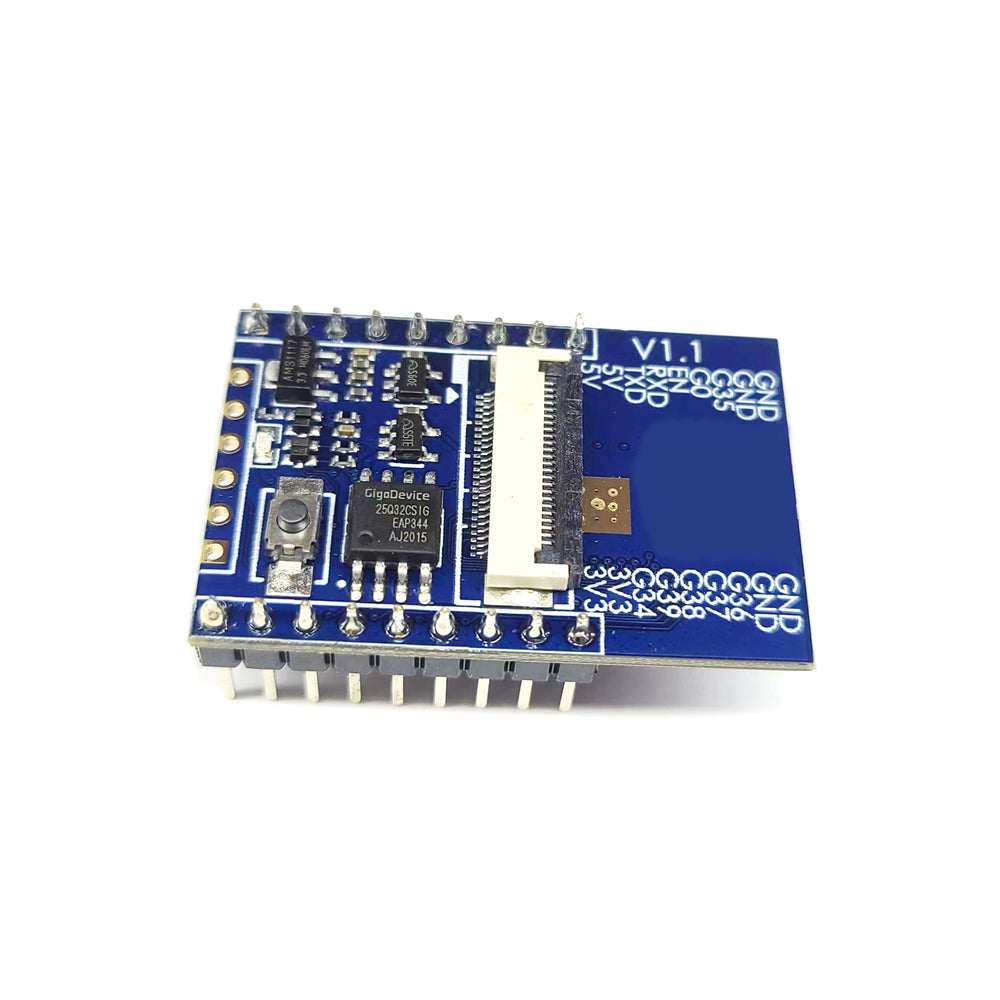

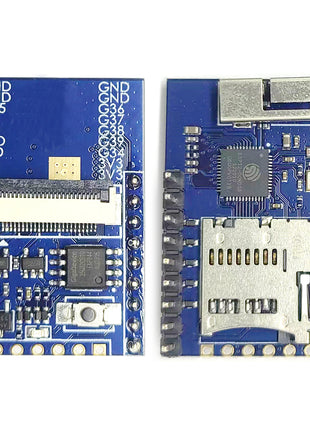

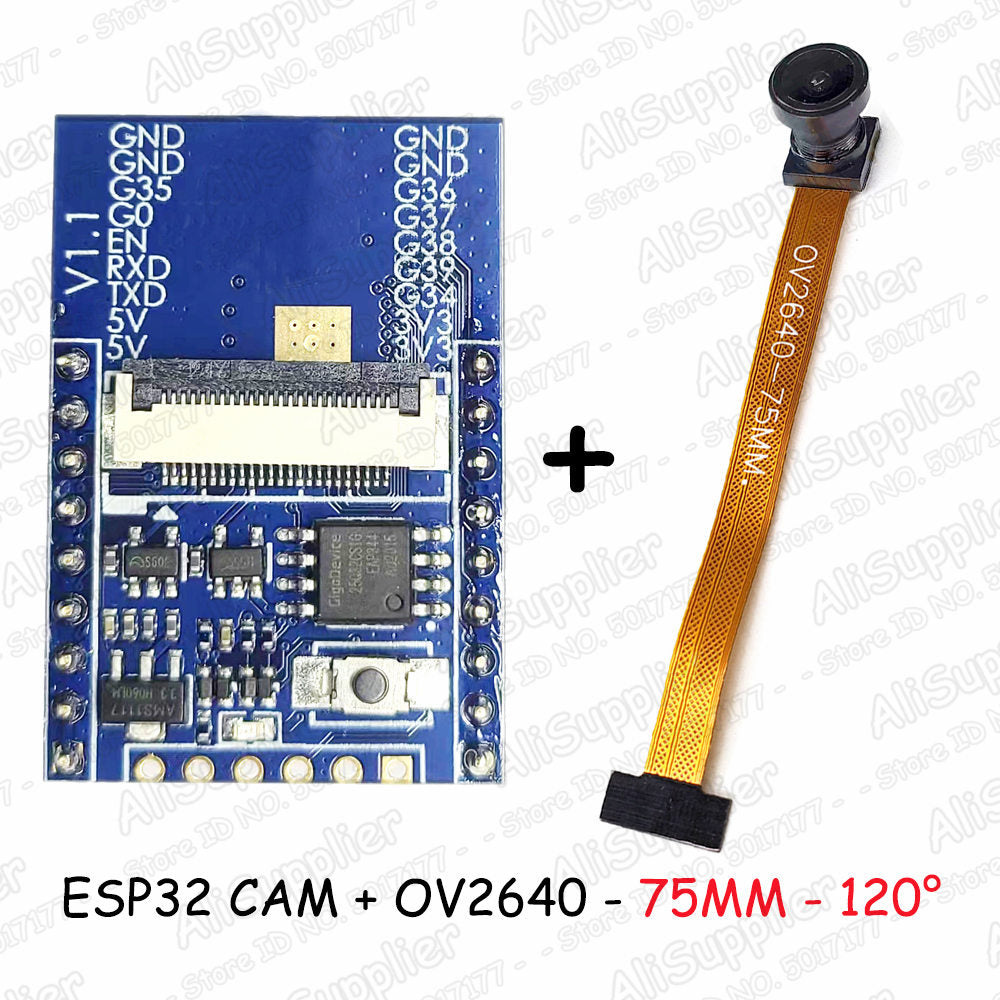

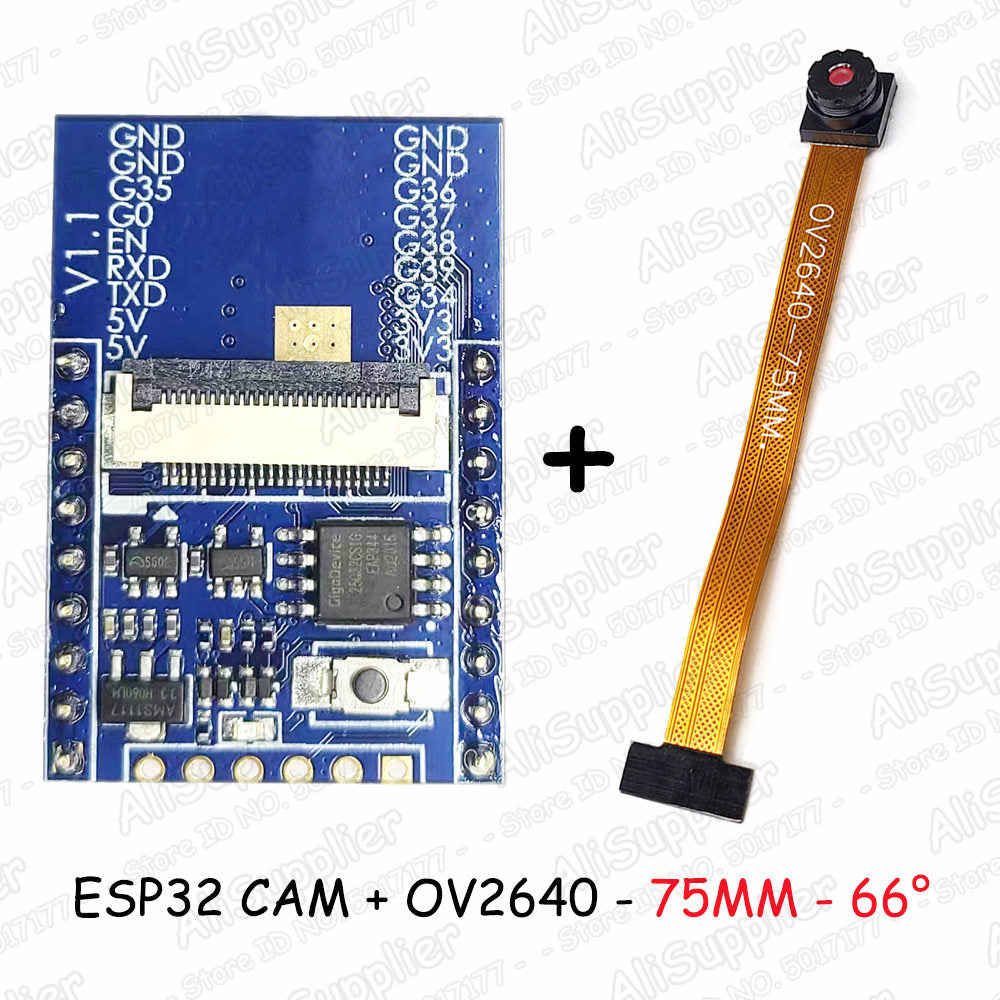

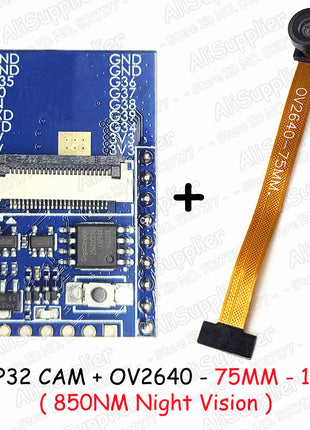

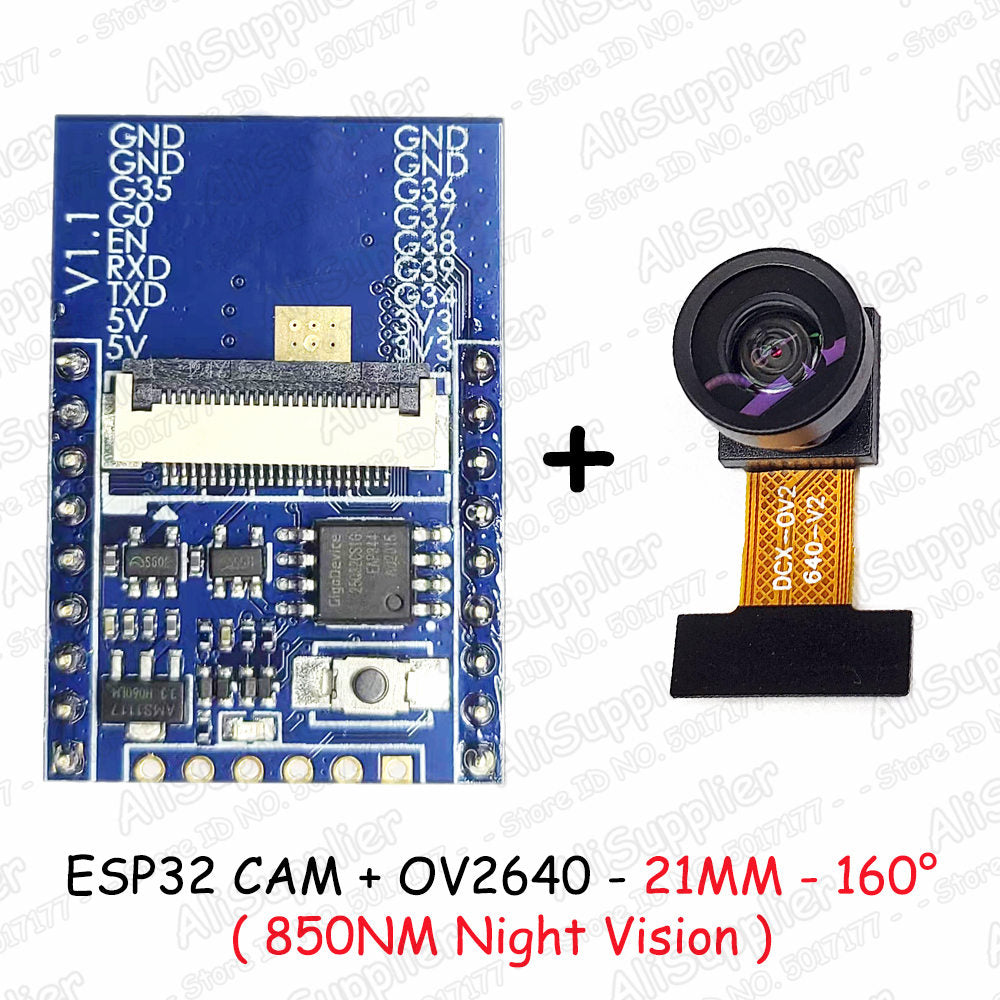

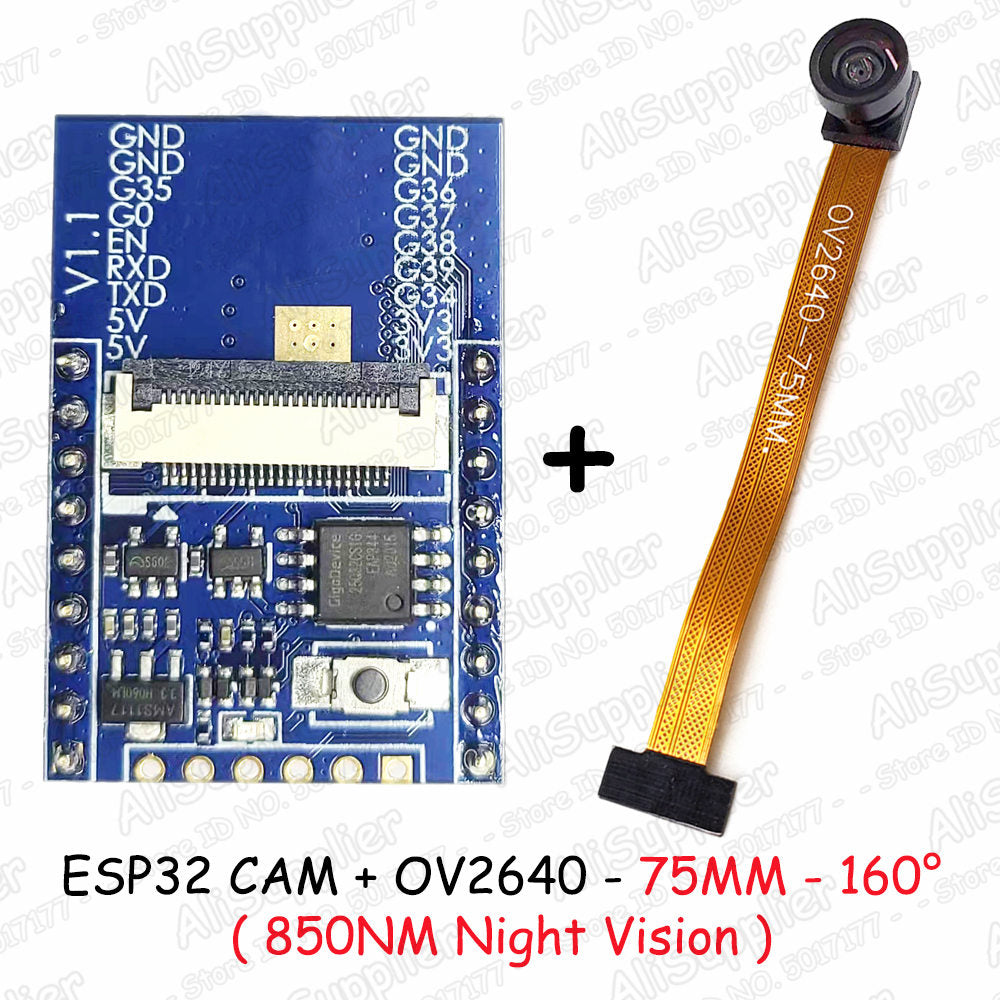

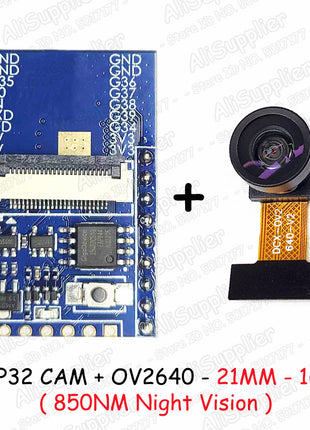

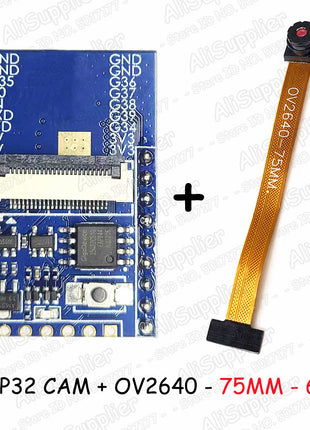

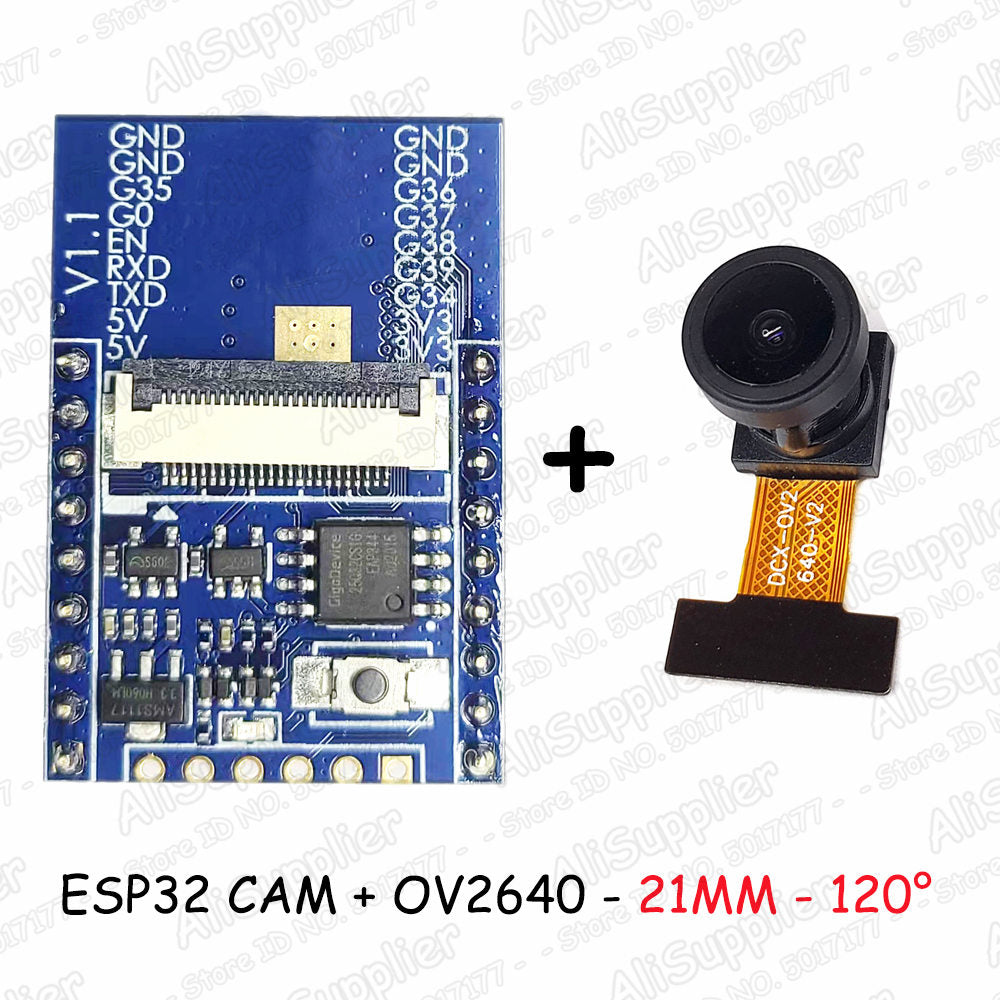

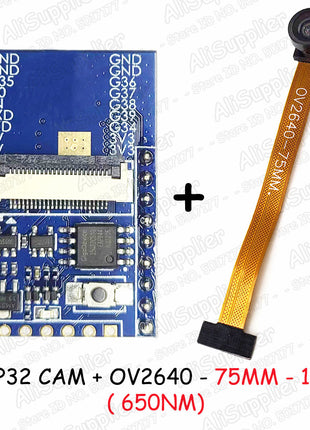

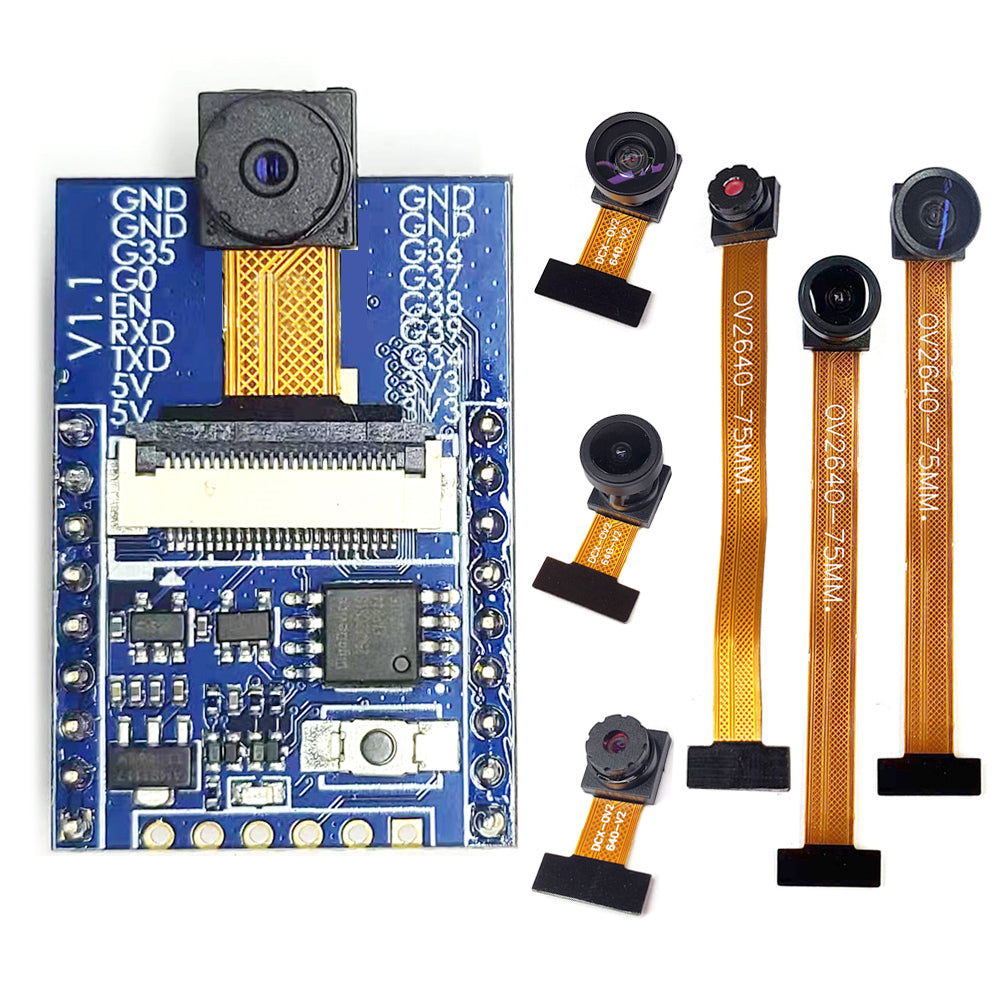

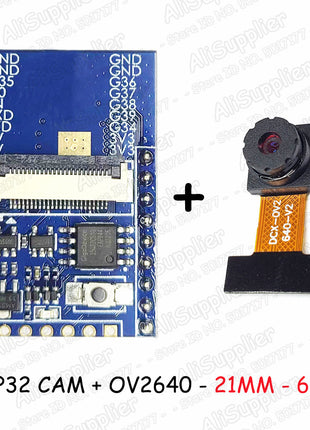

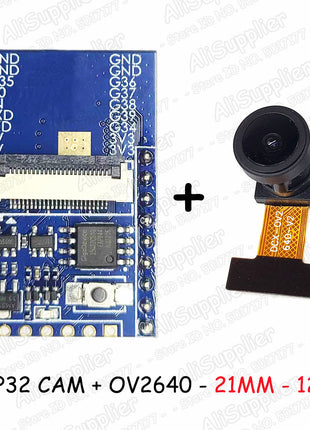

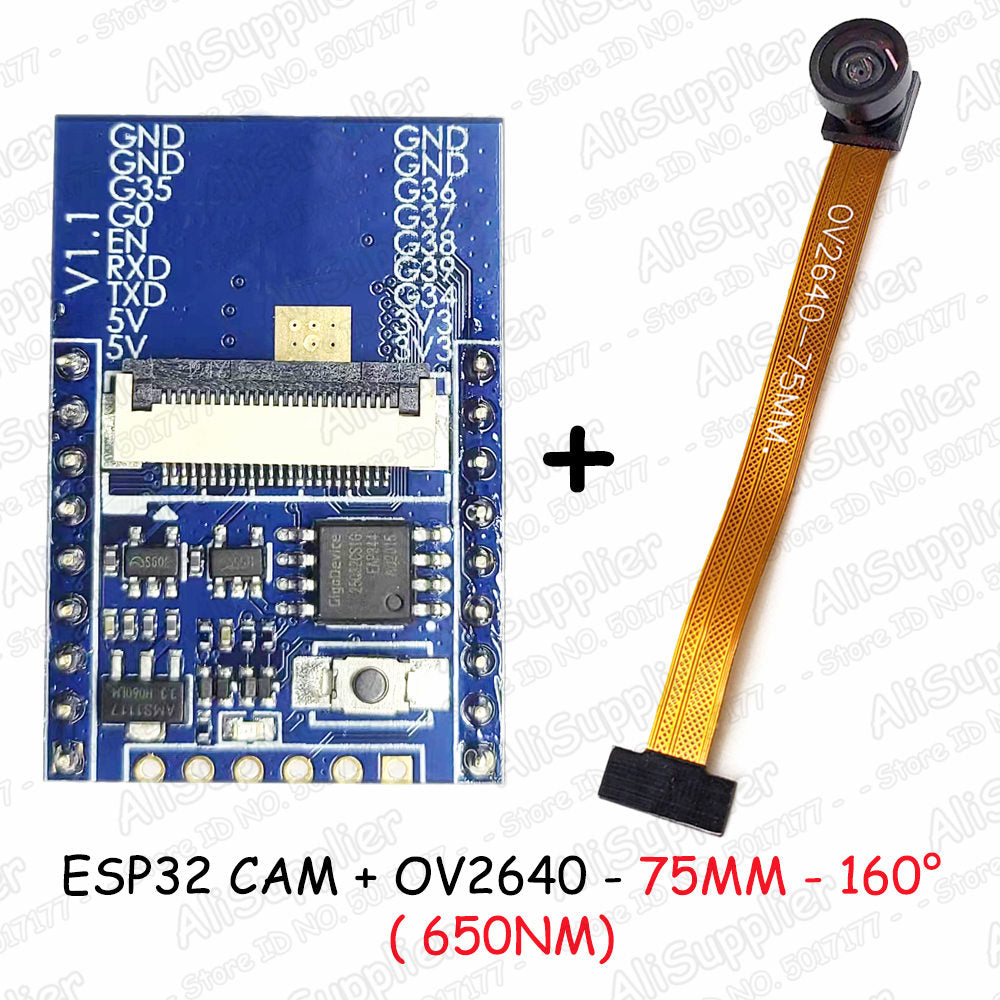

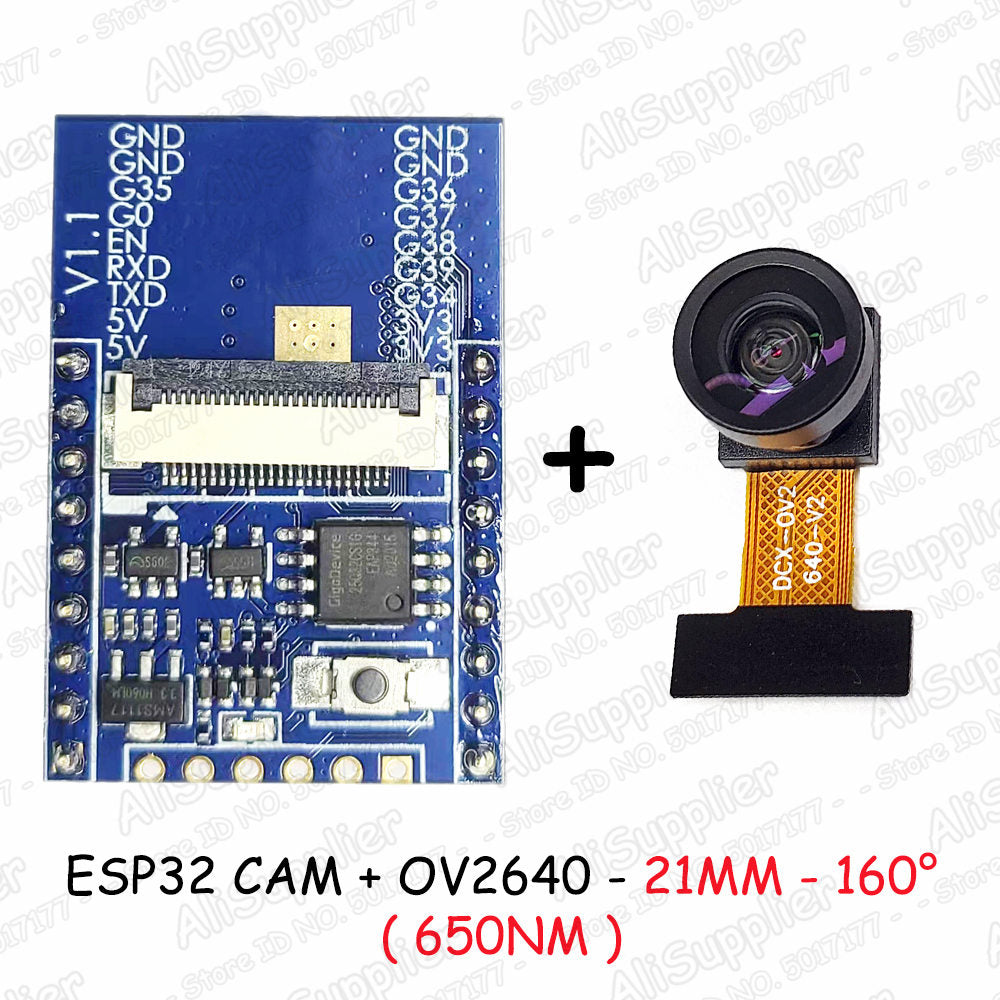

ESP32 CAM with OV2640 Camera Module Kit 66 120 160 Degrees 650nm 850nm Night Vision DVP 24Pin 2MP 2.4GHz WiFi Camera 4MB FLASH

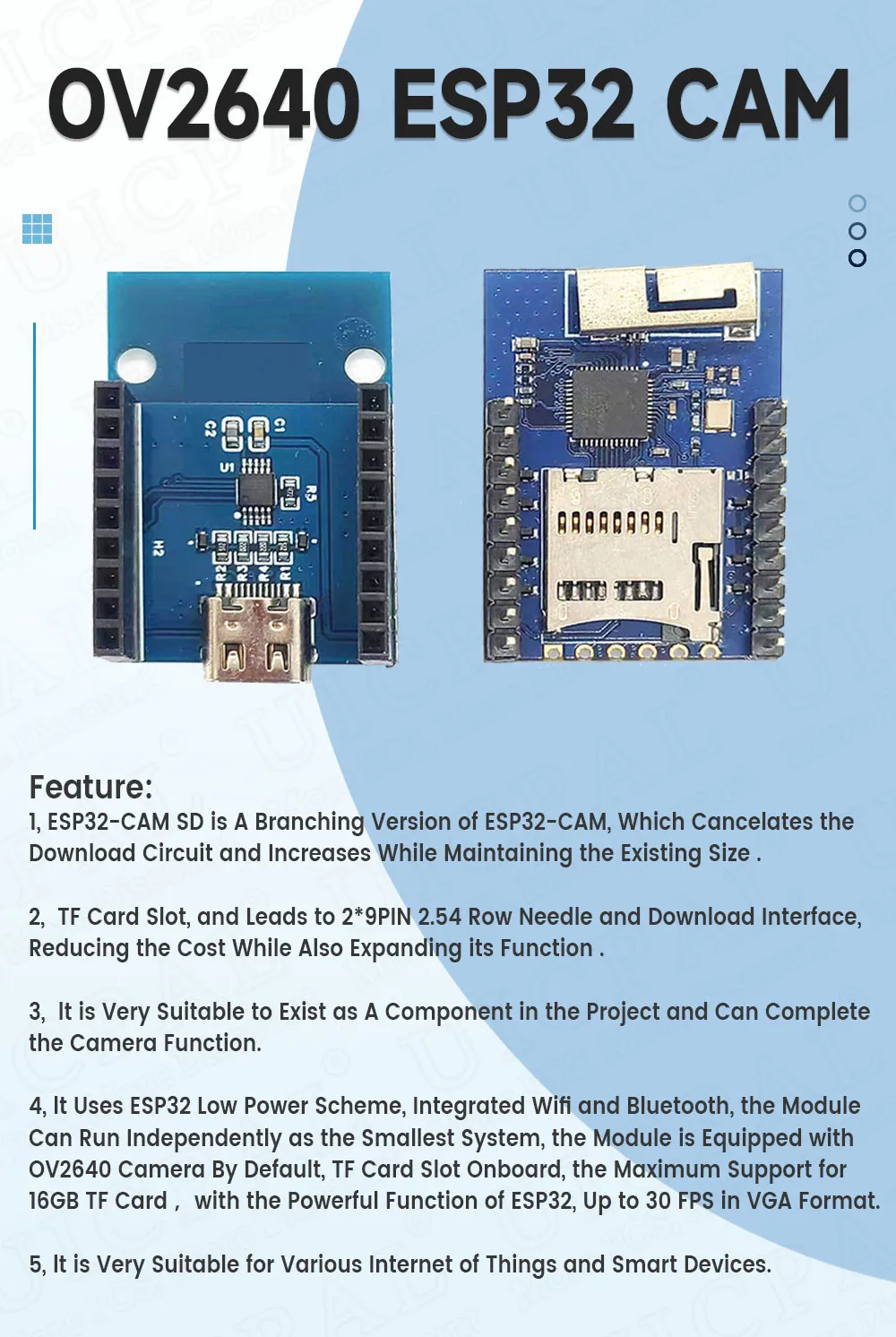

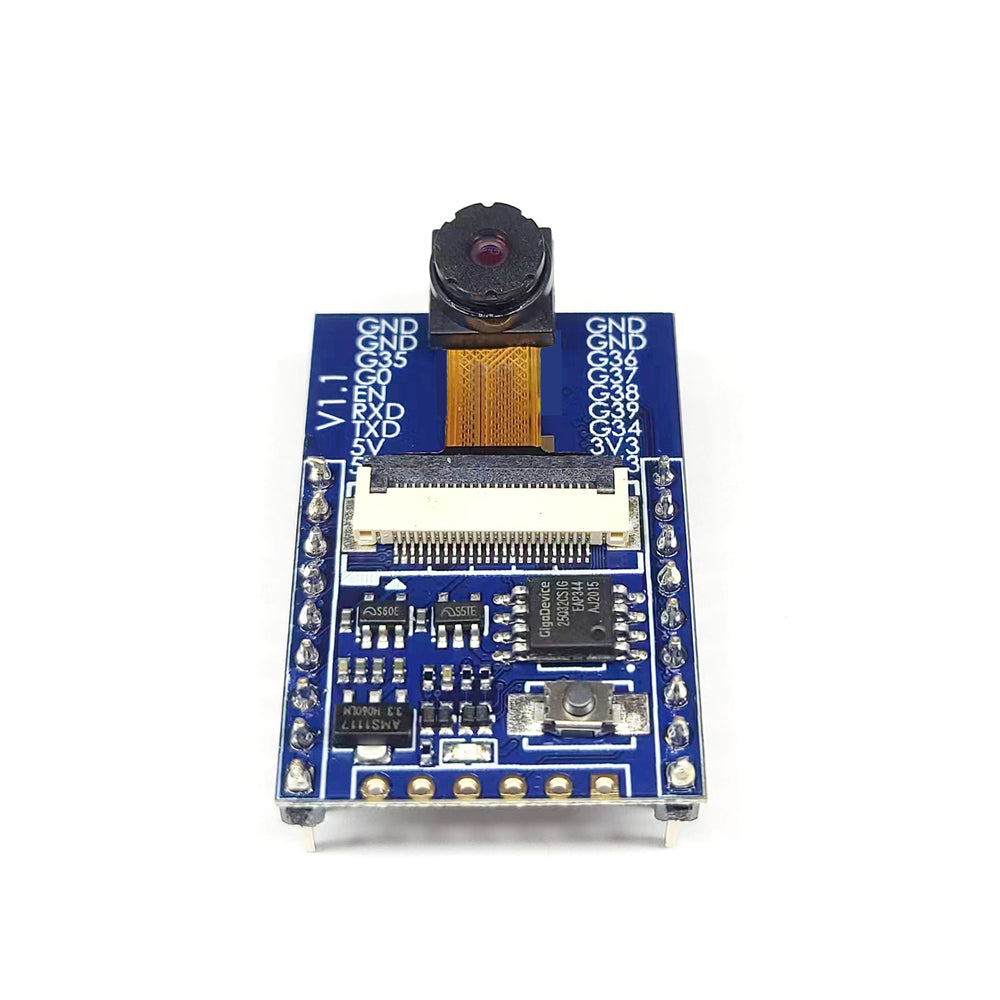

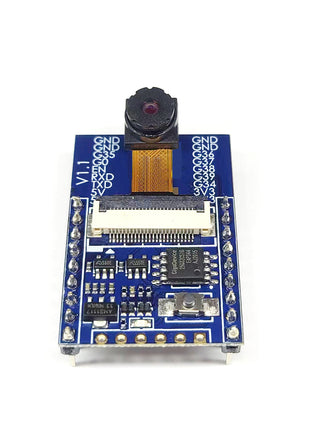

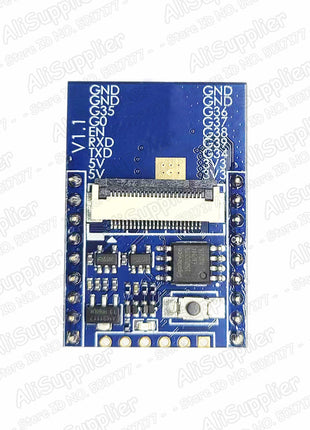

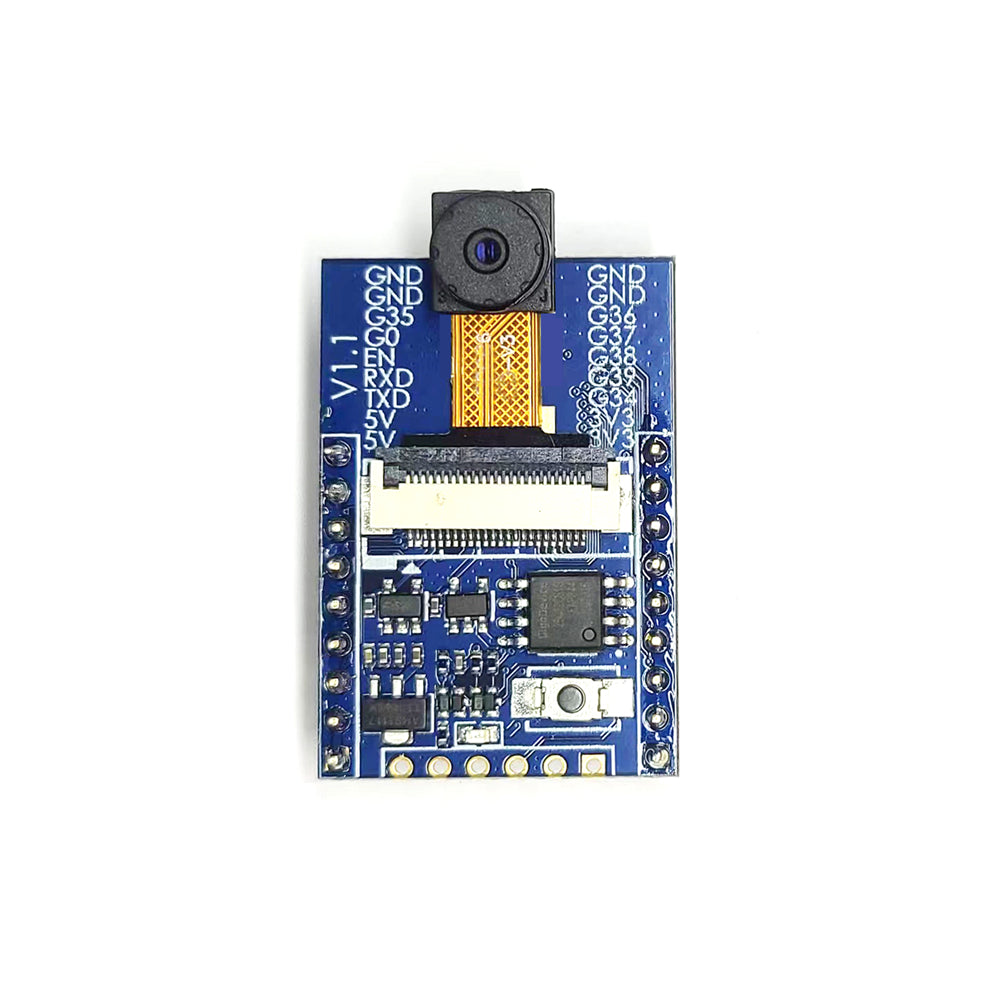

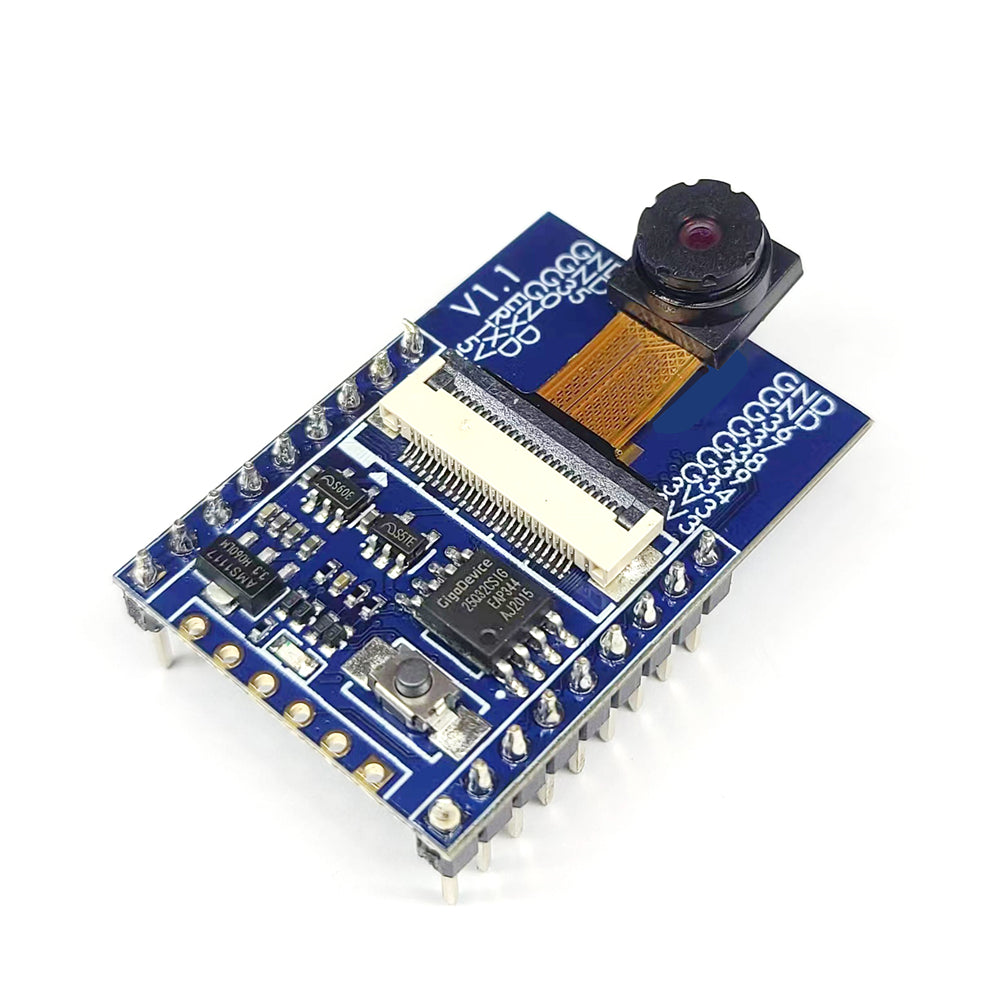

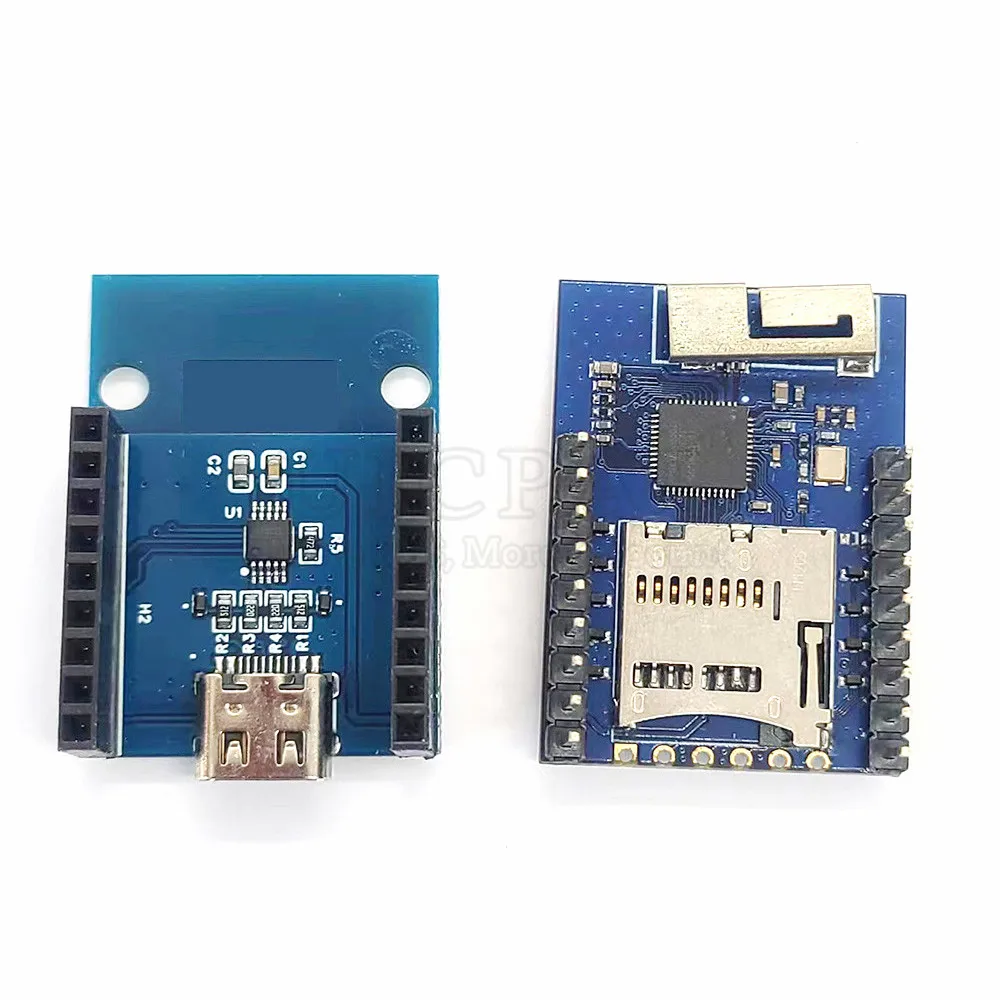

NEW ESP32-CAM is a branch version of ESP32-CAM, which cancels the download circuit, increases the TF card slot while maintaining the same size, and leads out 2*9PIN 2.54 pin headers and download interface, which reduces the cost and expands its functionality. , which is very suitable to exist as a component in the project to complete the camera function. Adopt ESP32 low power consumption scheme, integrate wifi and bluetooth, the module can run independently as the smallest system, the module is equipped with OV2640 camera by default, onboard TF card slot, supports up to 16GB TF card, with the powerful performance of ESP32, in VGA format Up to 30 FPS. Applicable to various Internet of Things and smart device occasions.

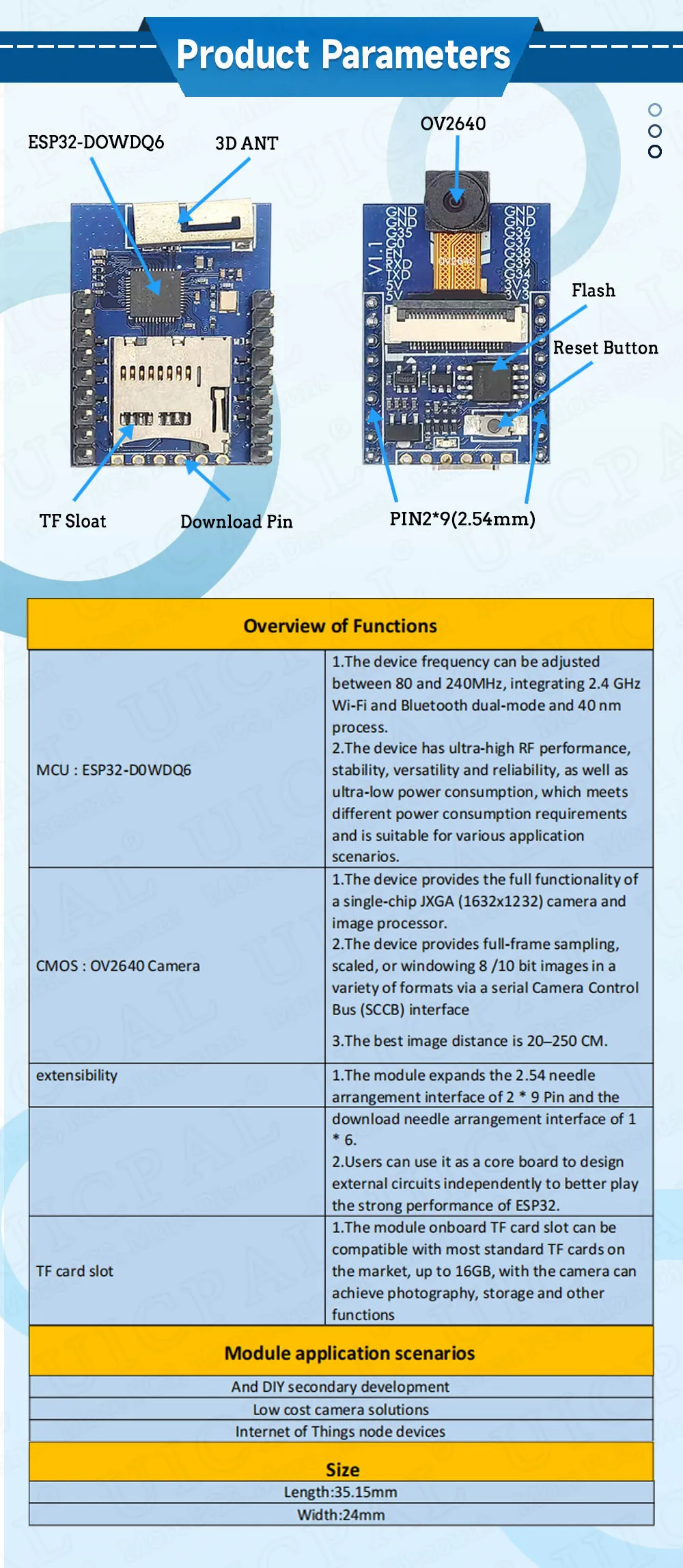

MCU : ESP32-D0WDQ6
The frequency can be adjusted between 80-240MHz, integrated 2.4 GHz Wi-Fi and Bluetooth dual-mode, 40nm process, with ultra-high RF performance, stability, versatility and reliability, and ultra-low power consumption, to meet different requirements The power consumption requirement is suitable for various application scenarios.

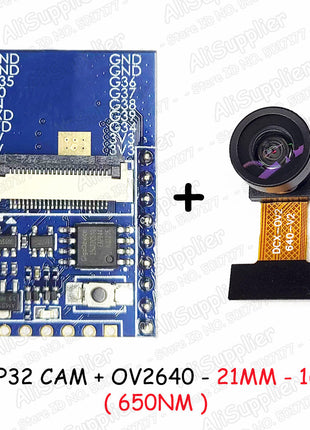

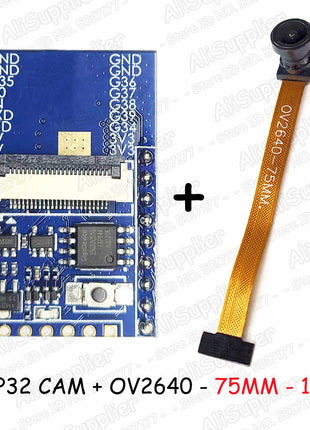

CMOS : OV2640 Camera
Provides the full functionality of a single-chip JXGA (1632x1232) camera and image processor, providing full-frame sampling, zoomed or windowed 8-bit/10-bit images in multiple formats via the Serial Camera Control Bus (SCCB) interface. The best image distance is 20-250CM.
Extensibility

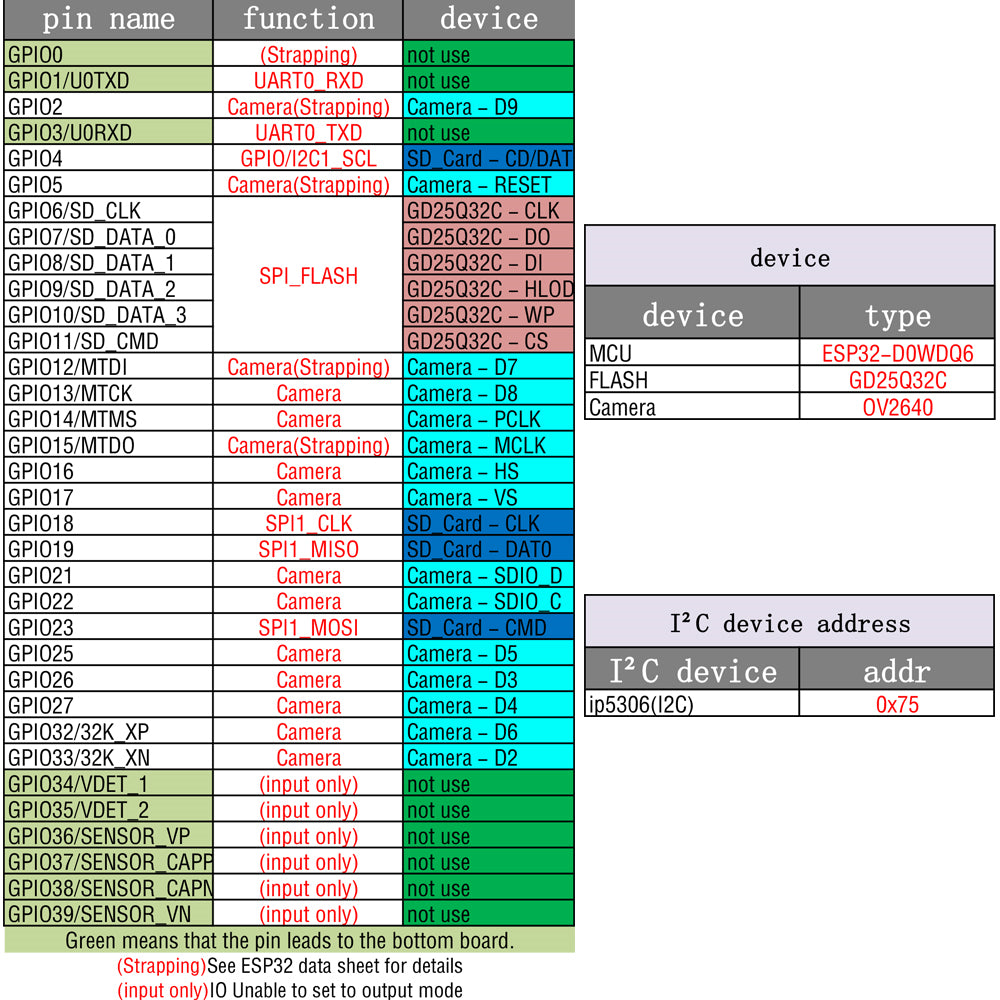

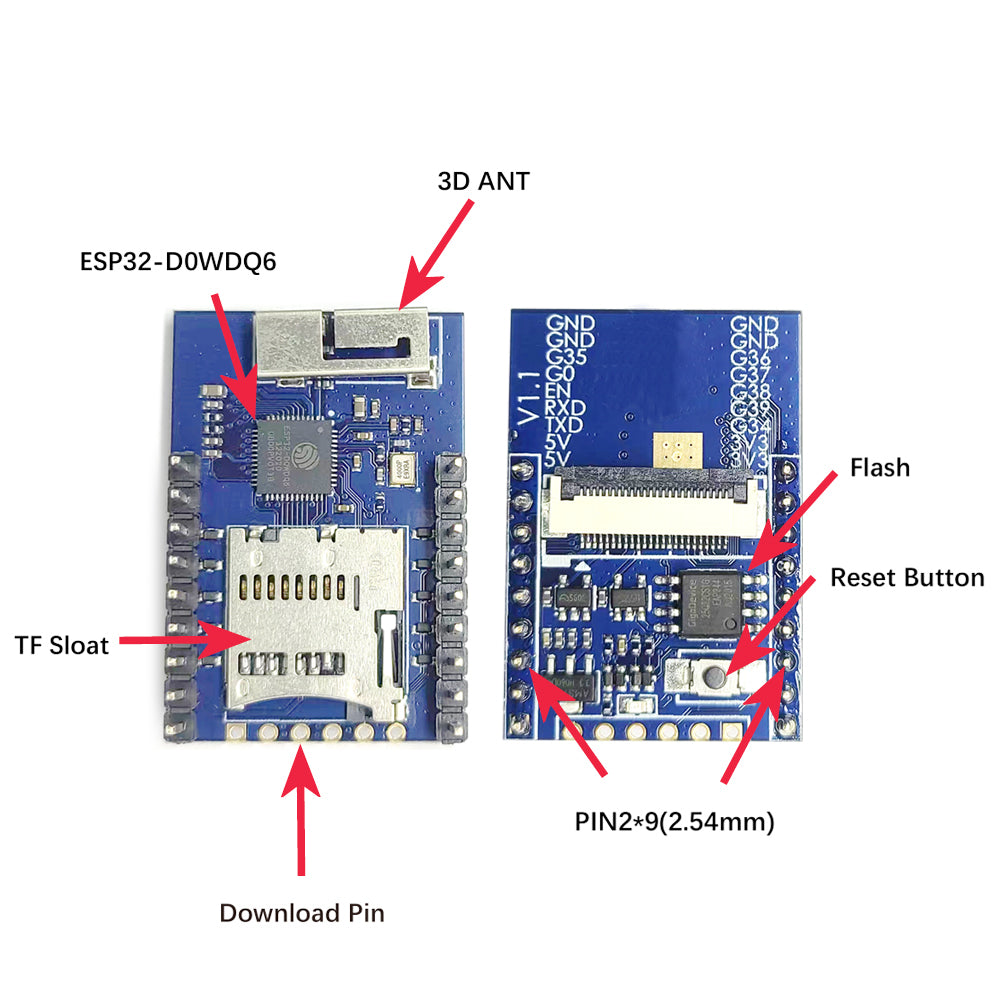

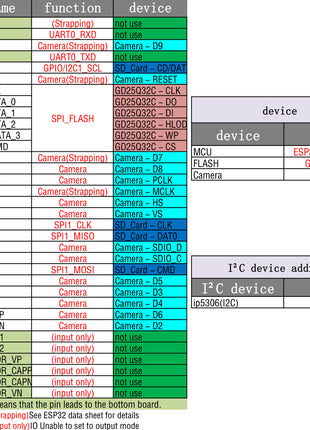

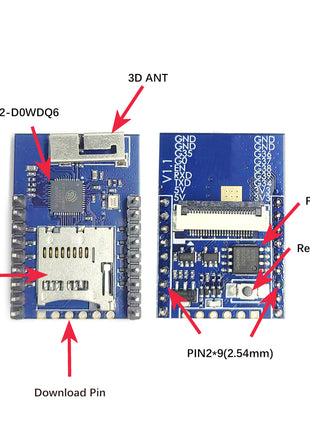

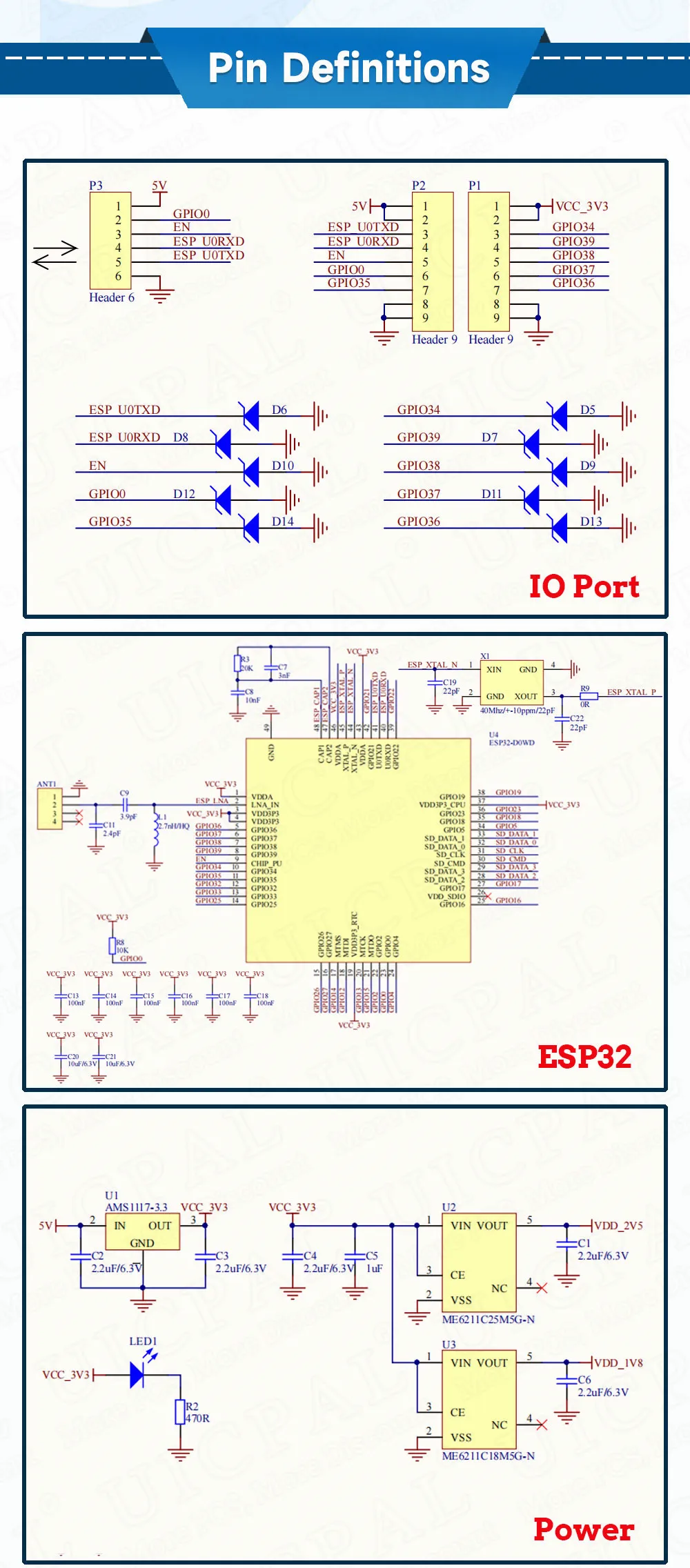

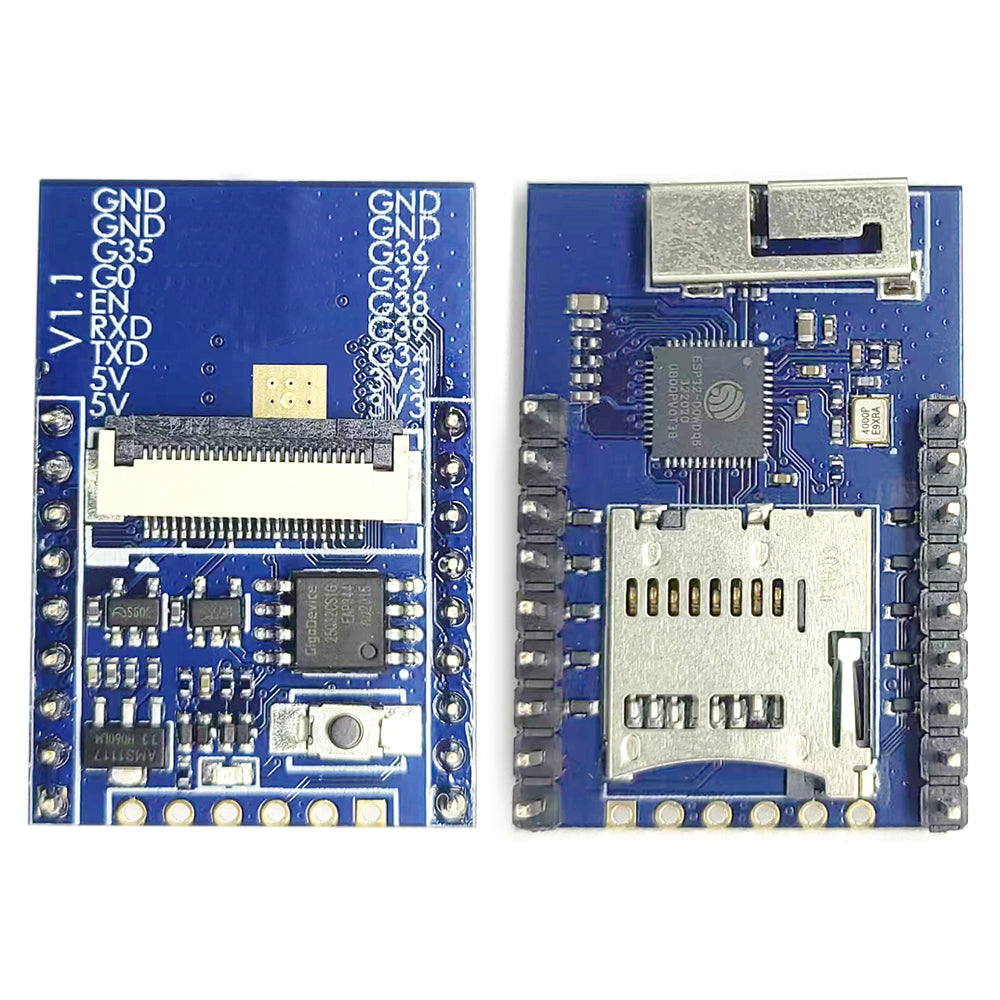

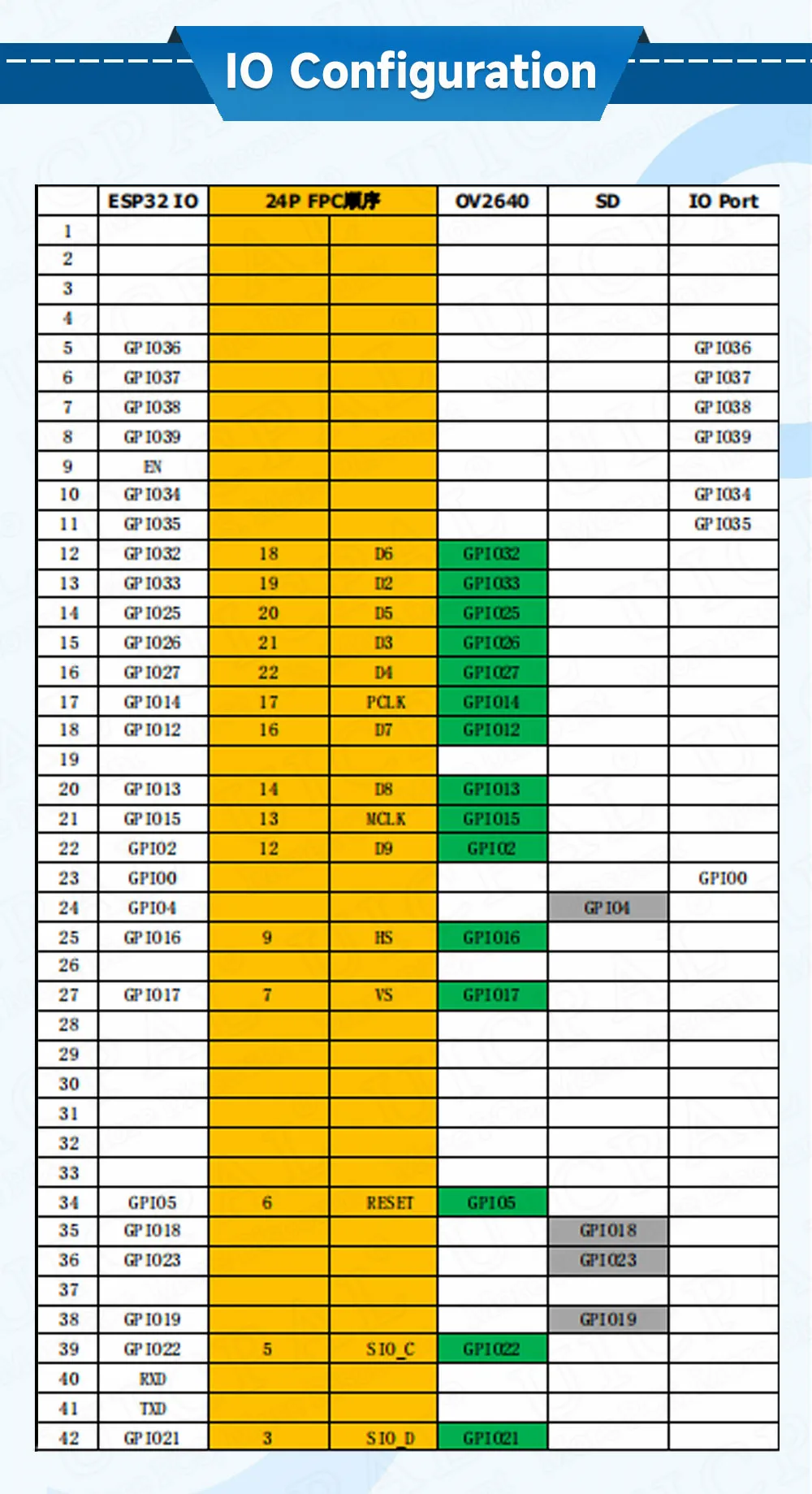

The module expands out the 2*9Pin 2.54 pin header interface and the 1*6 download pin header interface, making it rich in expansibility. Users can use it as a core board to independently design external circuits to better play. out the powerful performance of ESP32.

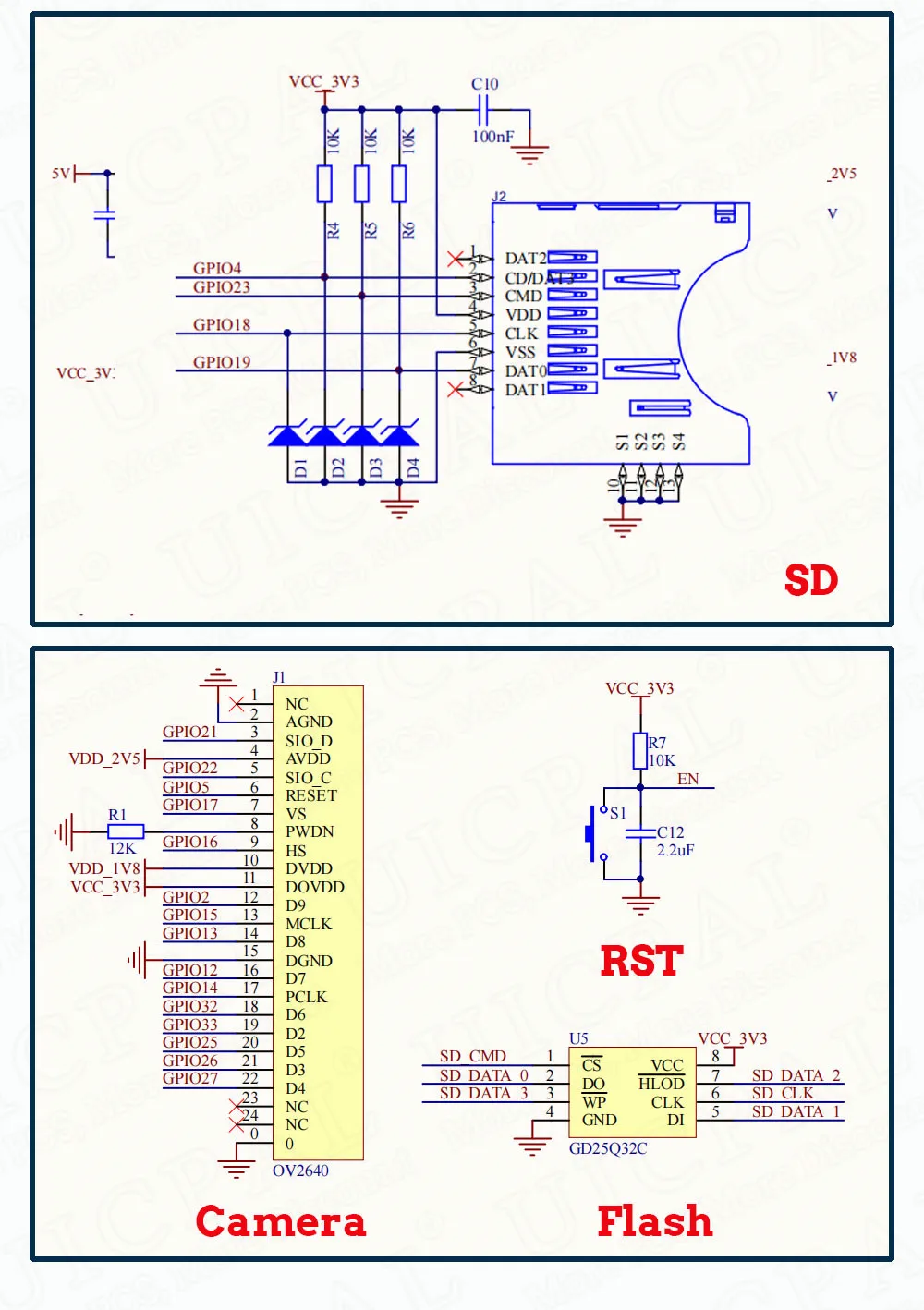

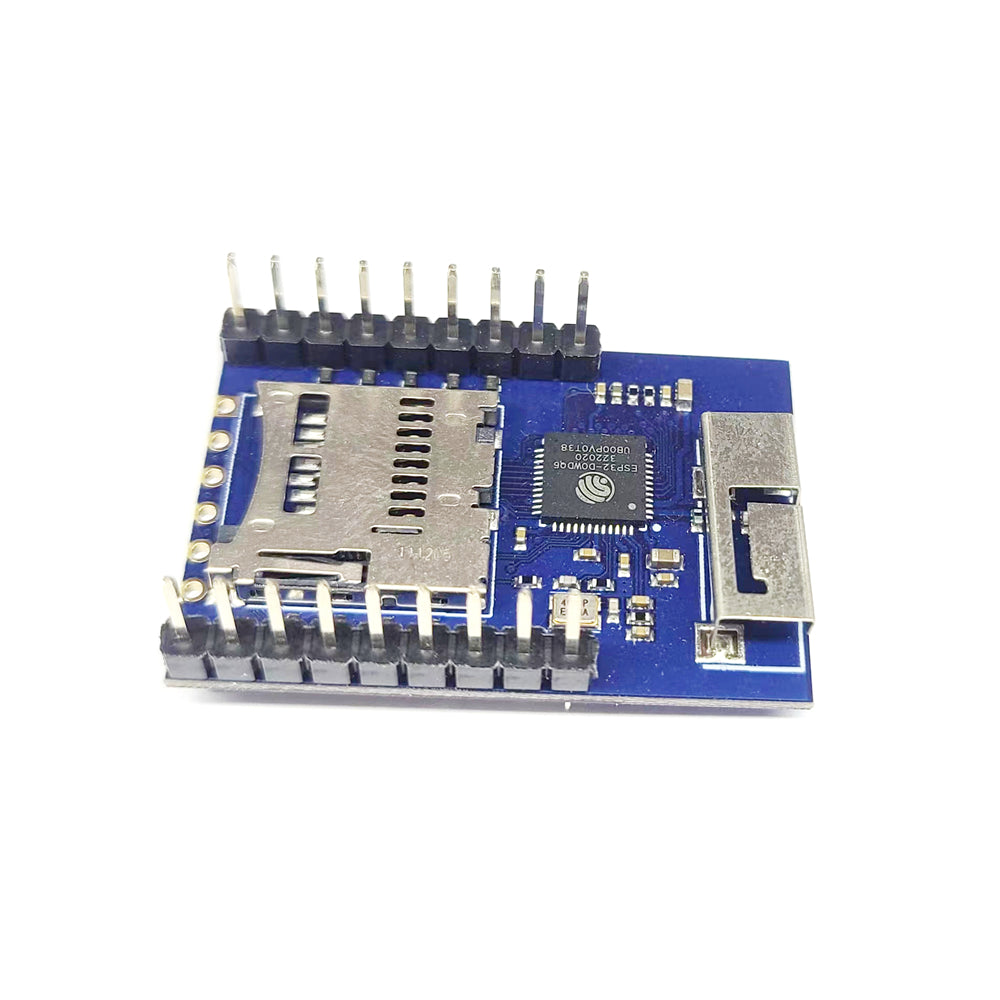

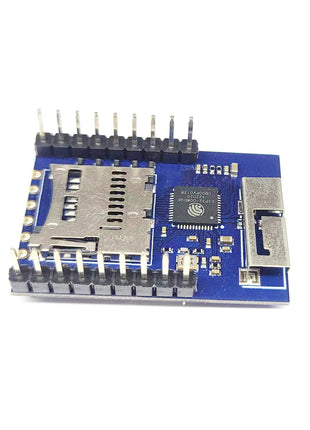

TF card slot
The module has a TF card slot on the board, which is compatible with most standard TF cards on the market, up to 16GB. With the camera, it can realize functions such as photo storage and review.

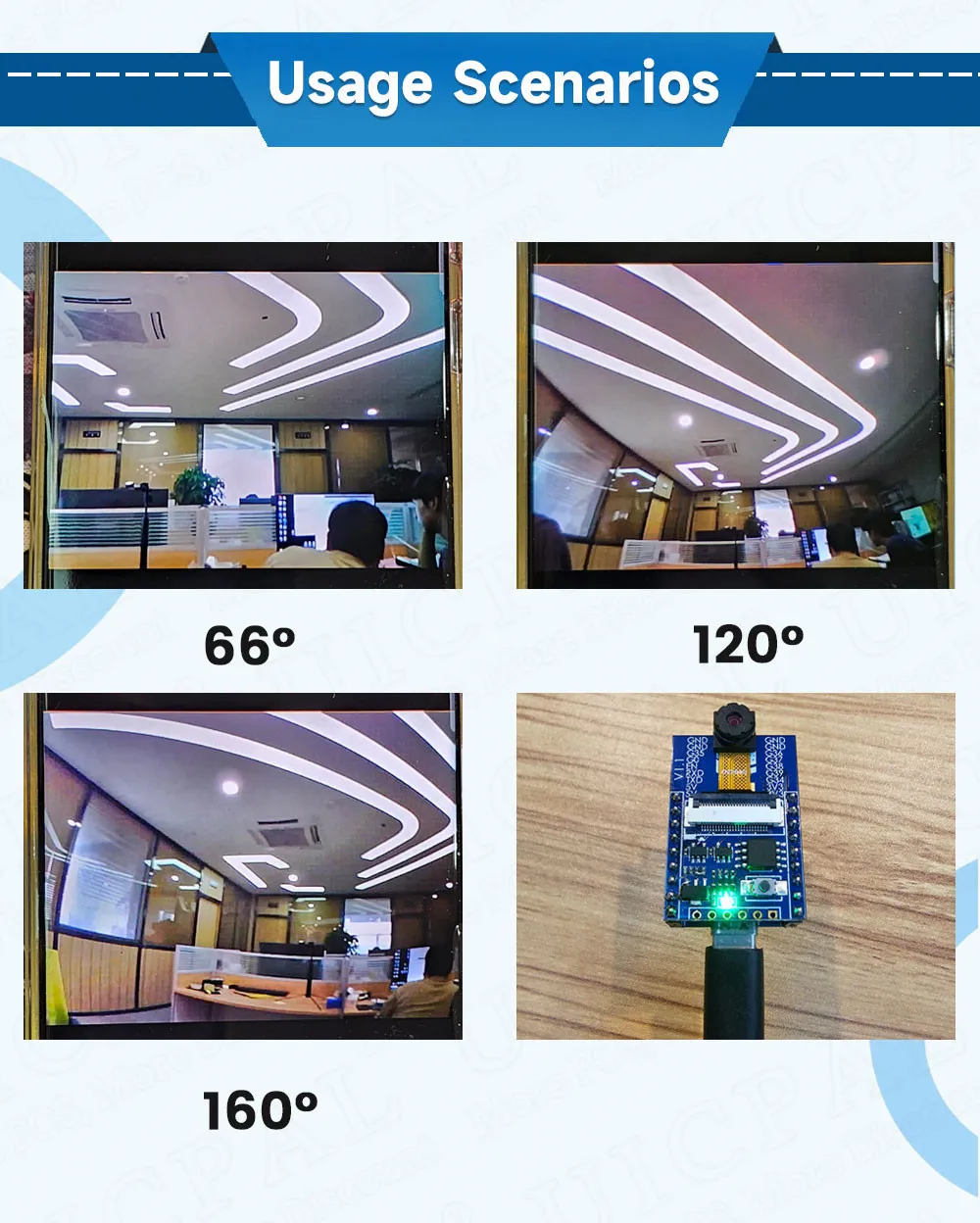

Module application scenarios
DIY secondary development, low-cost camera solutions, IoT node equipment.
