Description

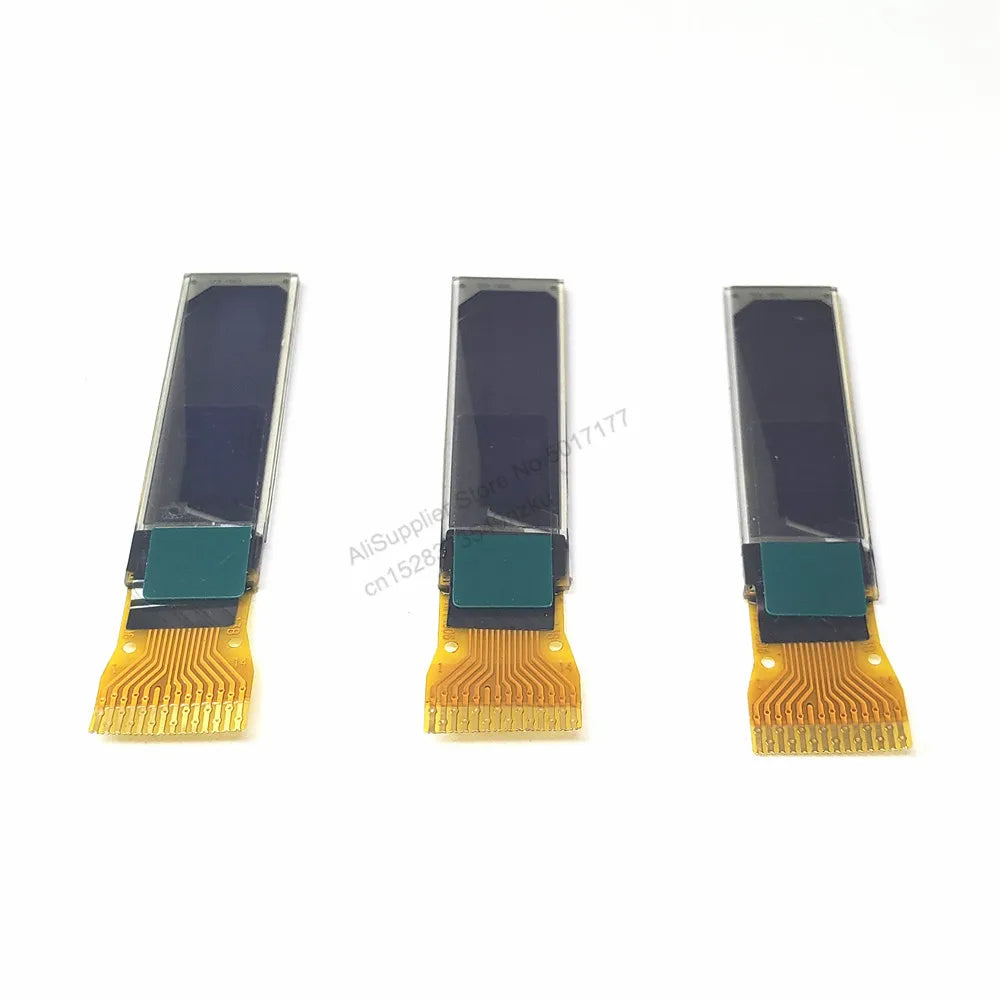

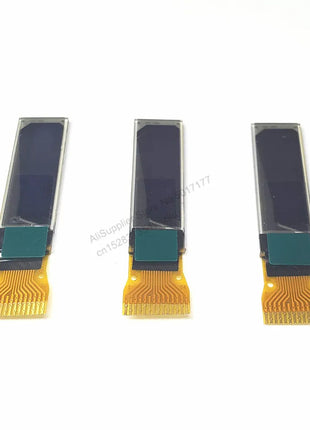

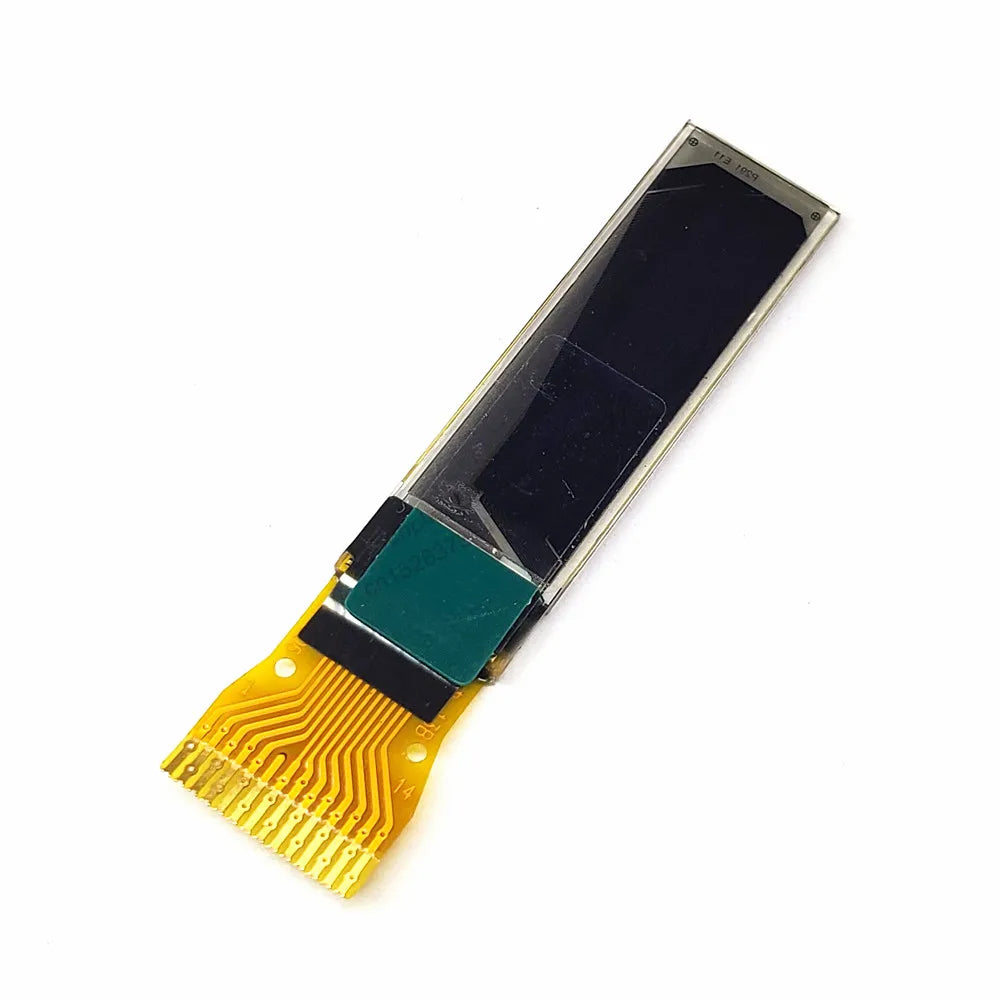

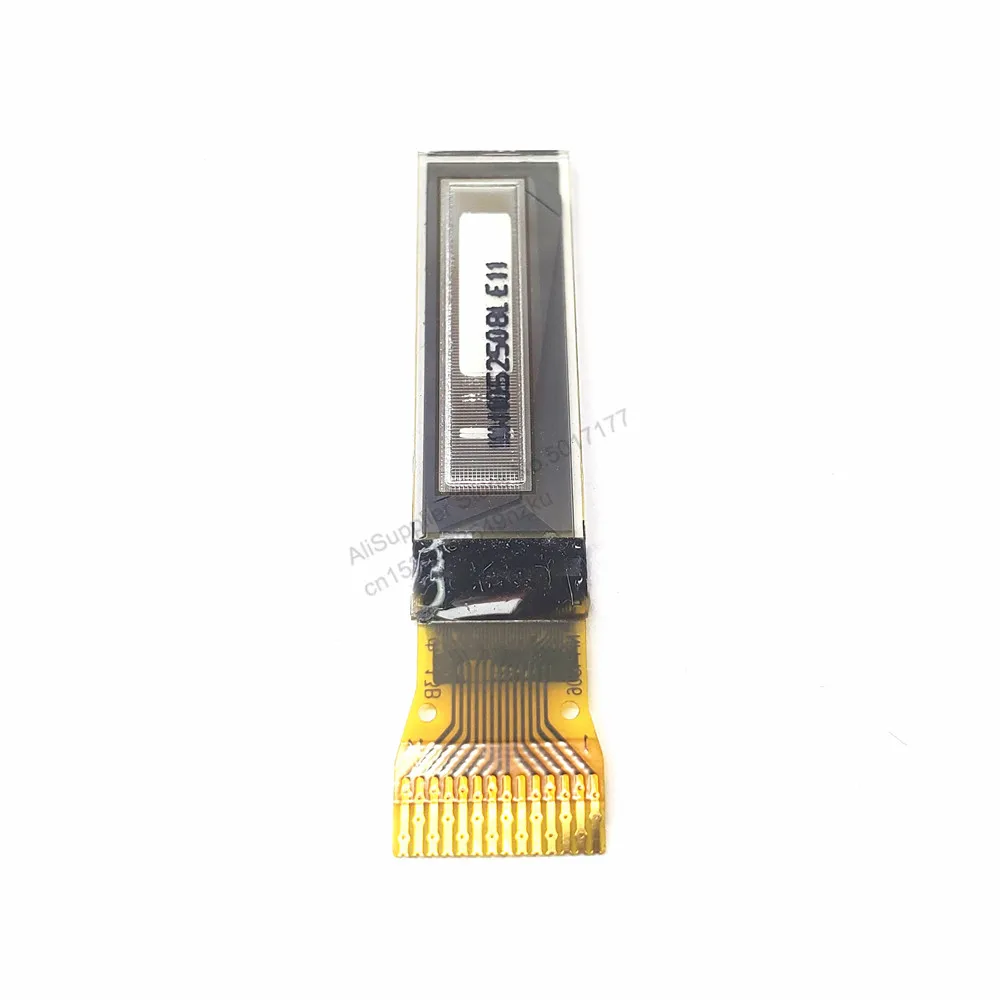

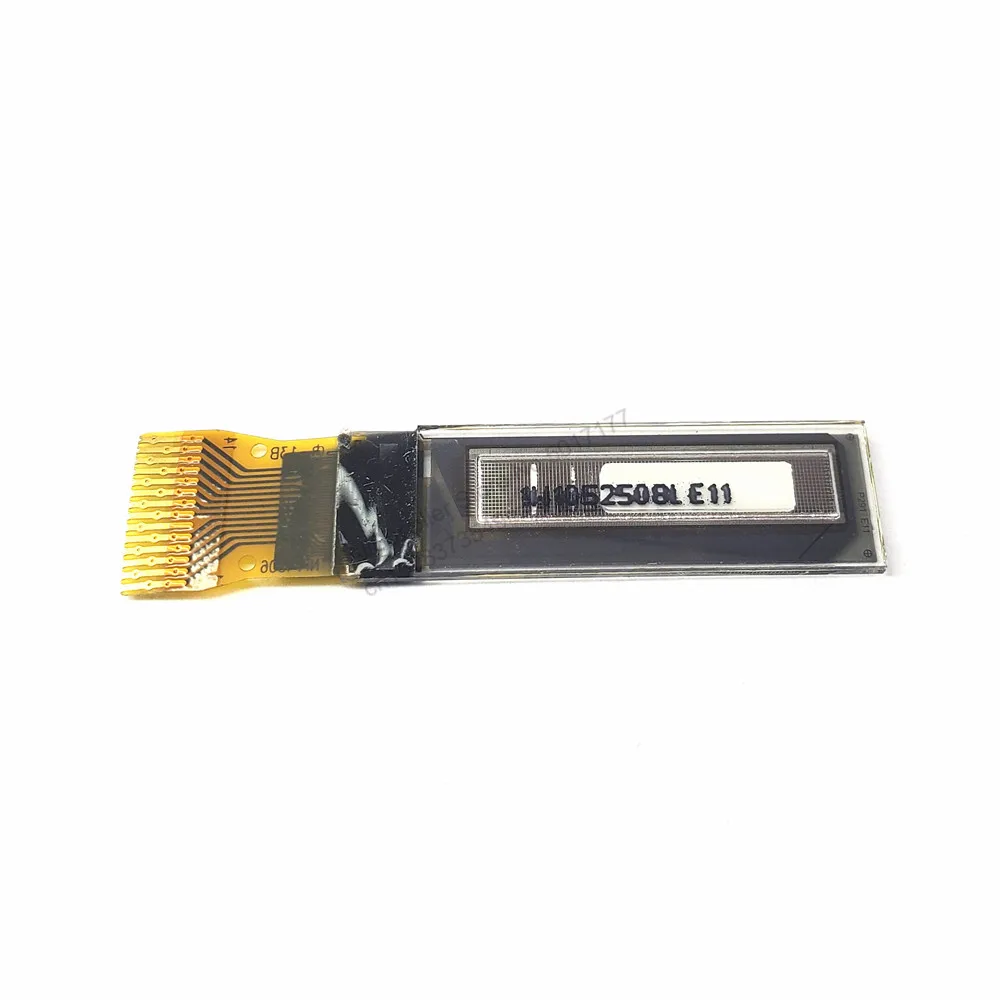

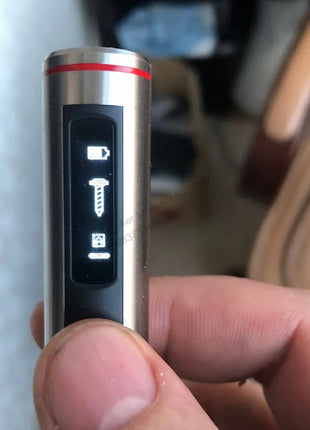

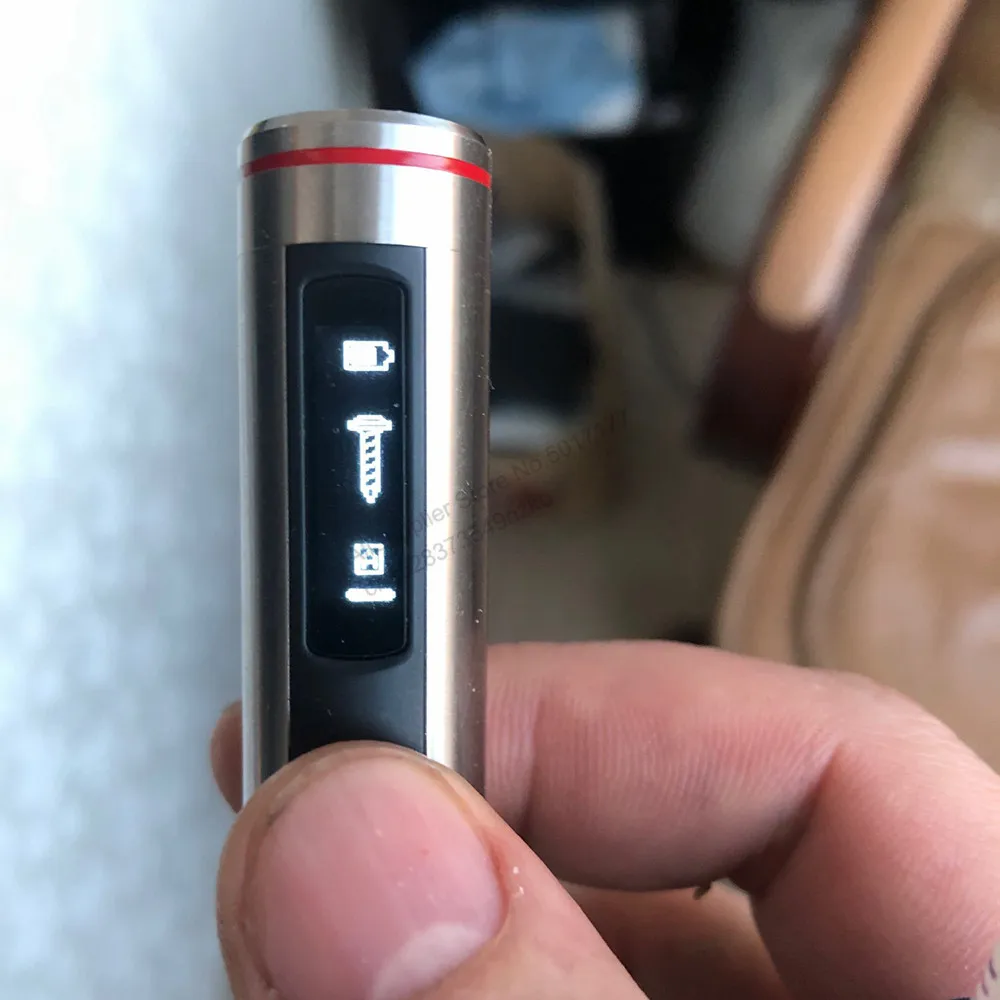

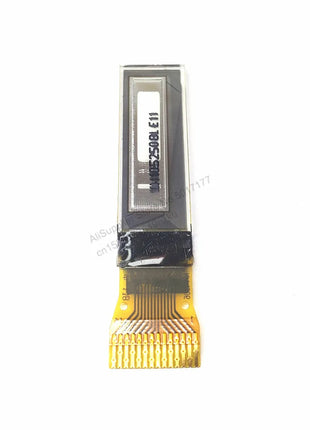

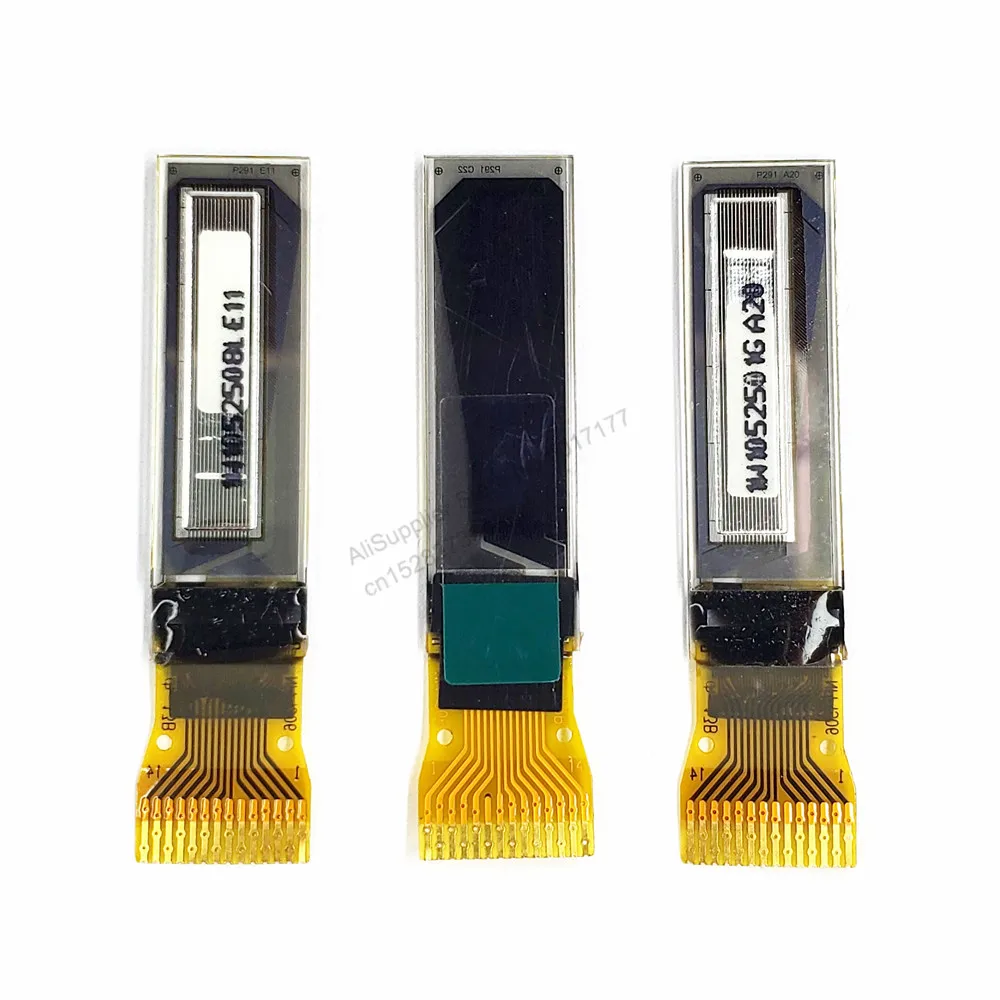

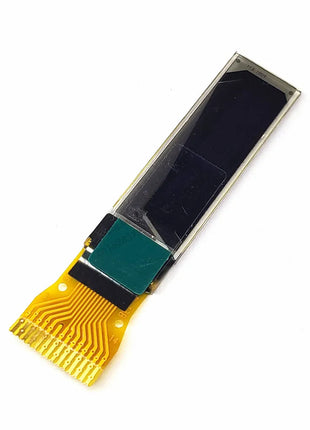

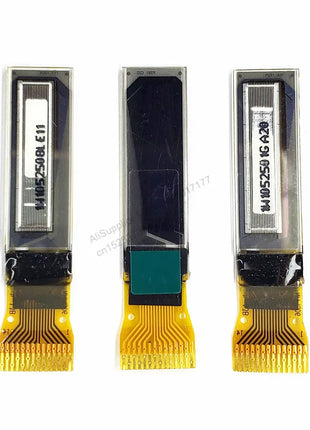

0.69 Inch OLED Display Module 14Pin OLED Display 96*16 White Light SSD1315 I2C IIC Screen Display for TS100 TS08

Display Specifications
:

1) Display Mode: Passive Matrix

2) Display Color: Monochrome (White)

3) Drive Duty: 1/16 Duty

4) Driver IC: SSD1315

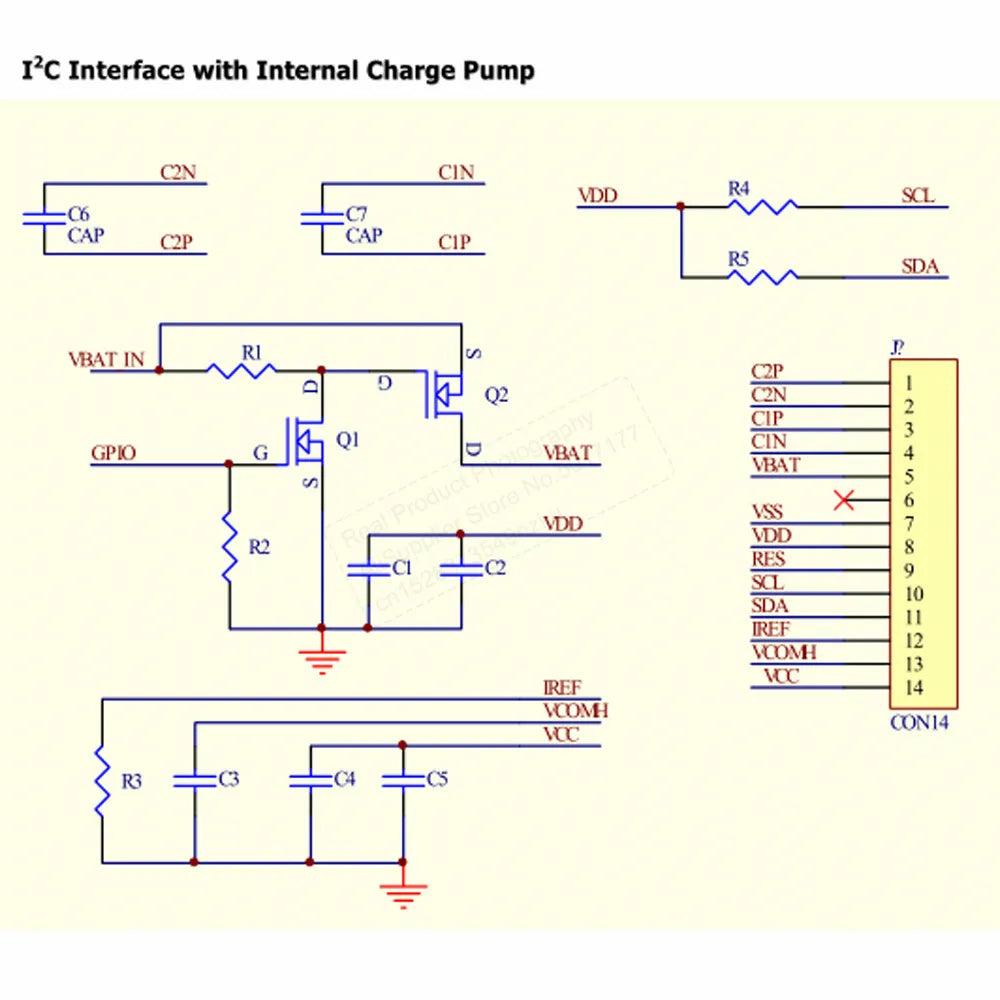

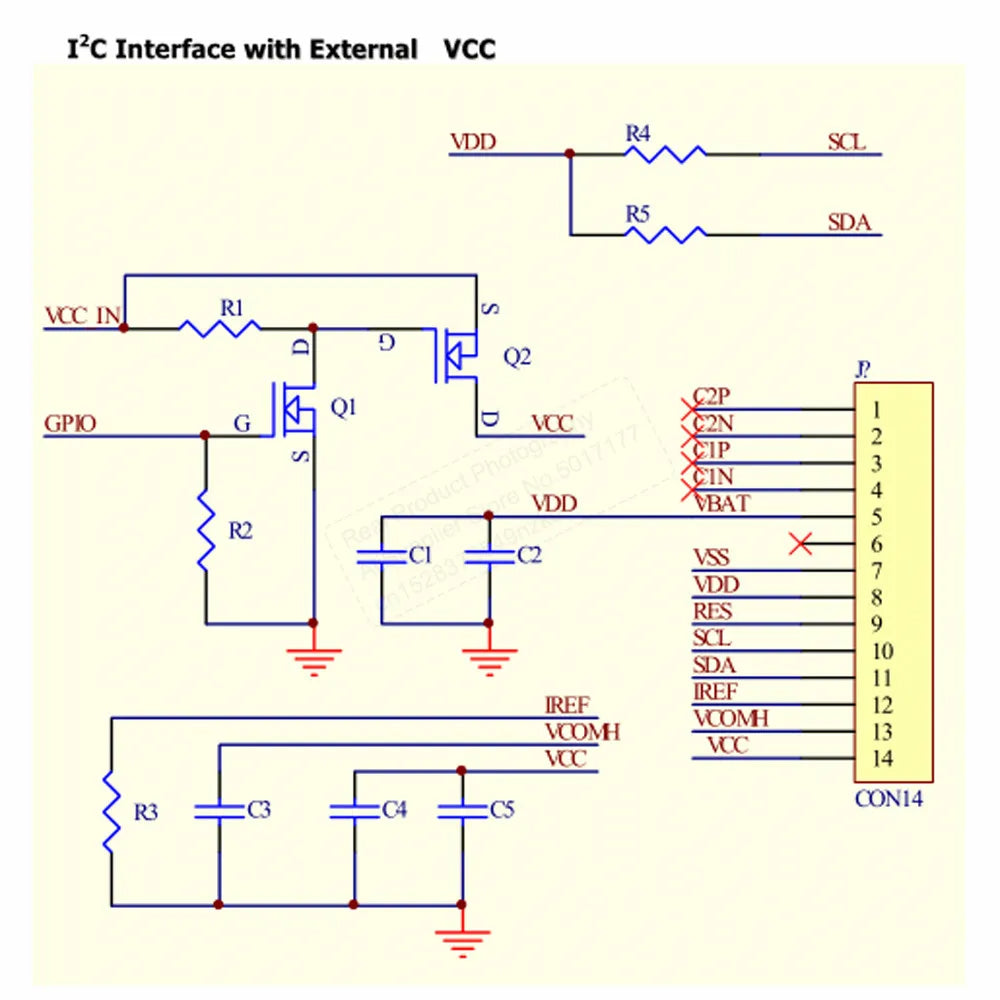

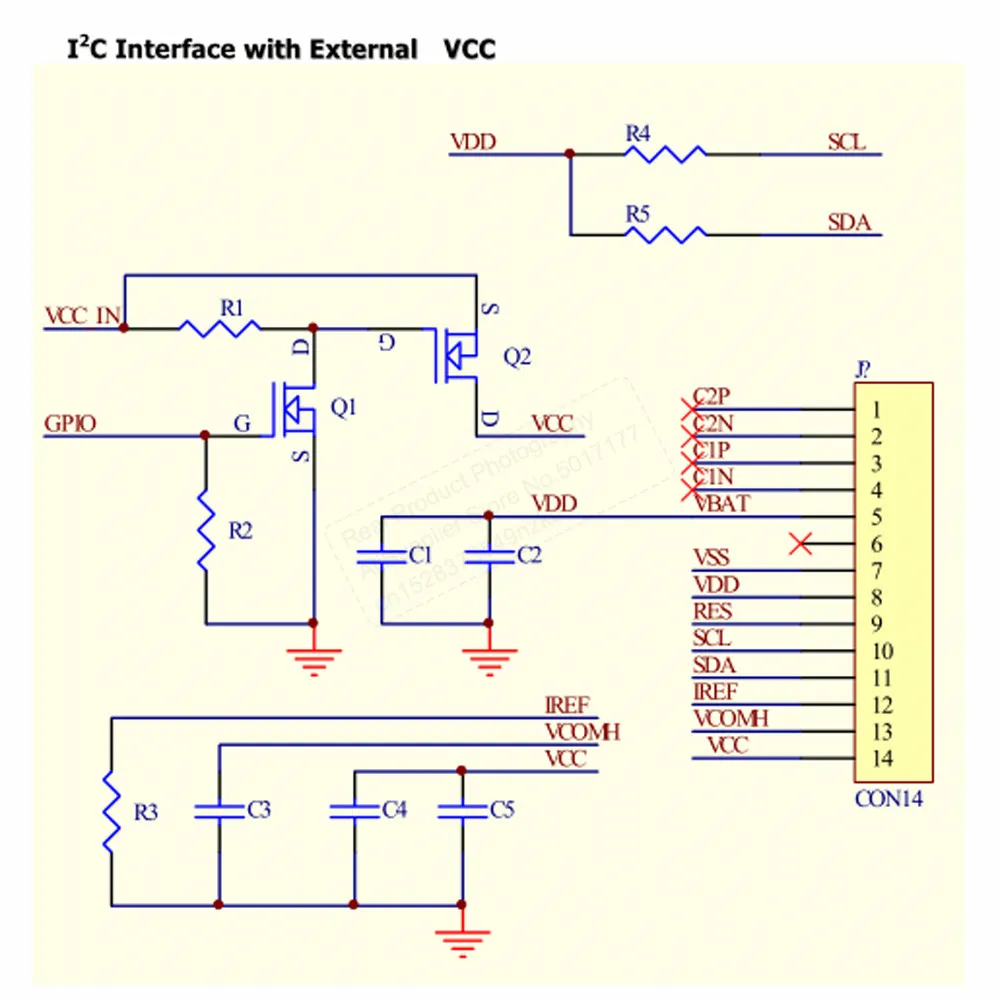

5) Interface: I2C

6) Diagonal A/A Size 0.69 inch

7) Wide range of operating temperature:-40°C to 70°C

Mechanical Specifications
:

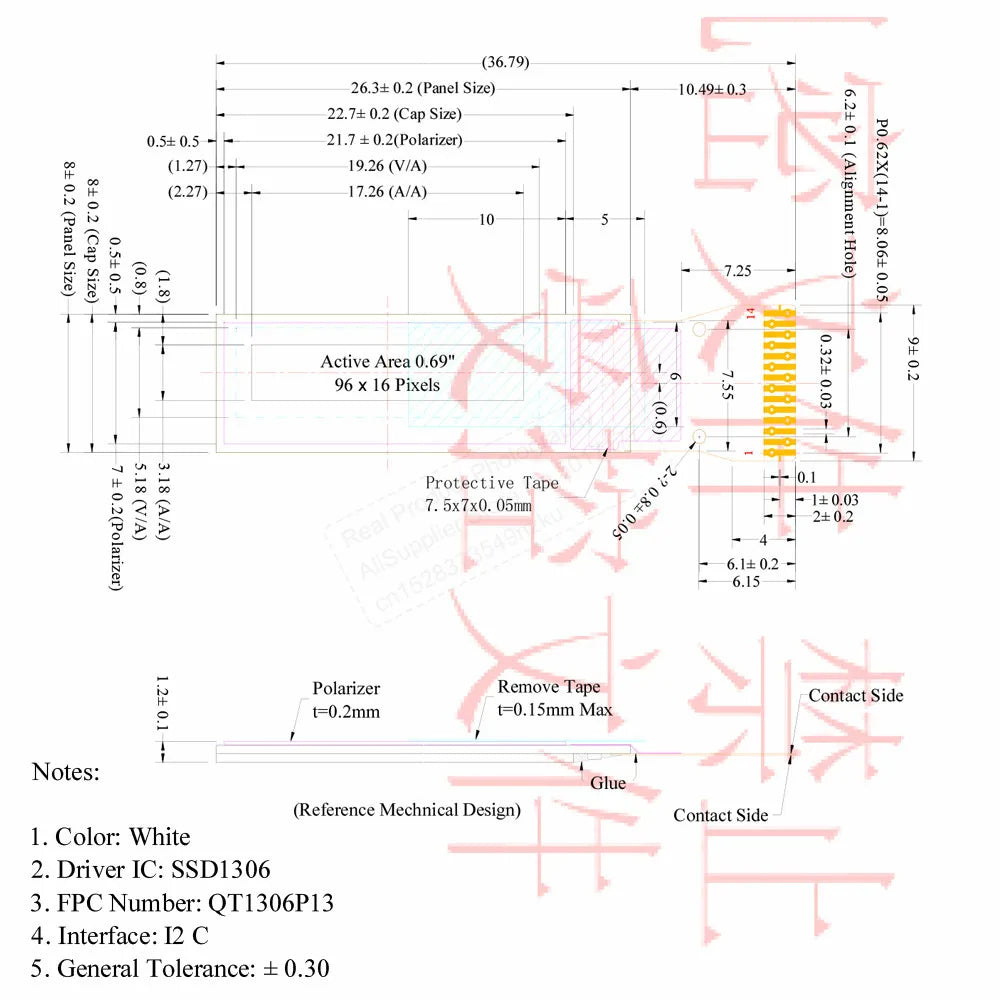

1) Outline Drawing: According to the annexed outline drawing

2) Number of Pixels: 96 × 16

3) Panel Size: 26.3 × 8× 1.2 (mm)

4) Active Area: 17.26 ×3.18 (mm)

5) Pixel Pitch: 0.18 × 0.2 (mm)

6) Pixel Size: 0.16 × 0.18 (mm

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
