Description

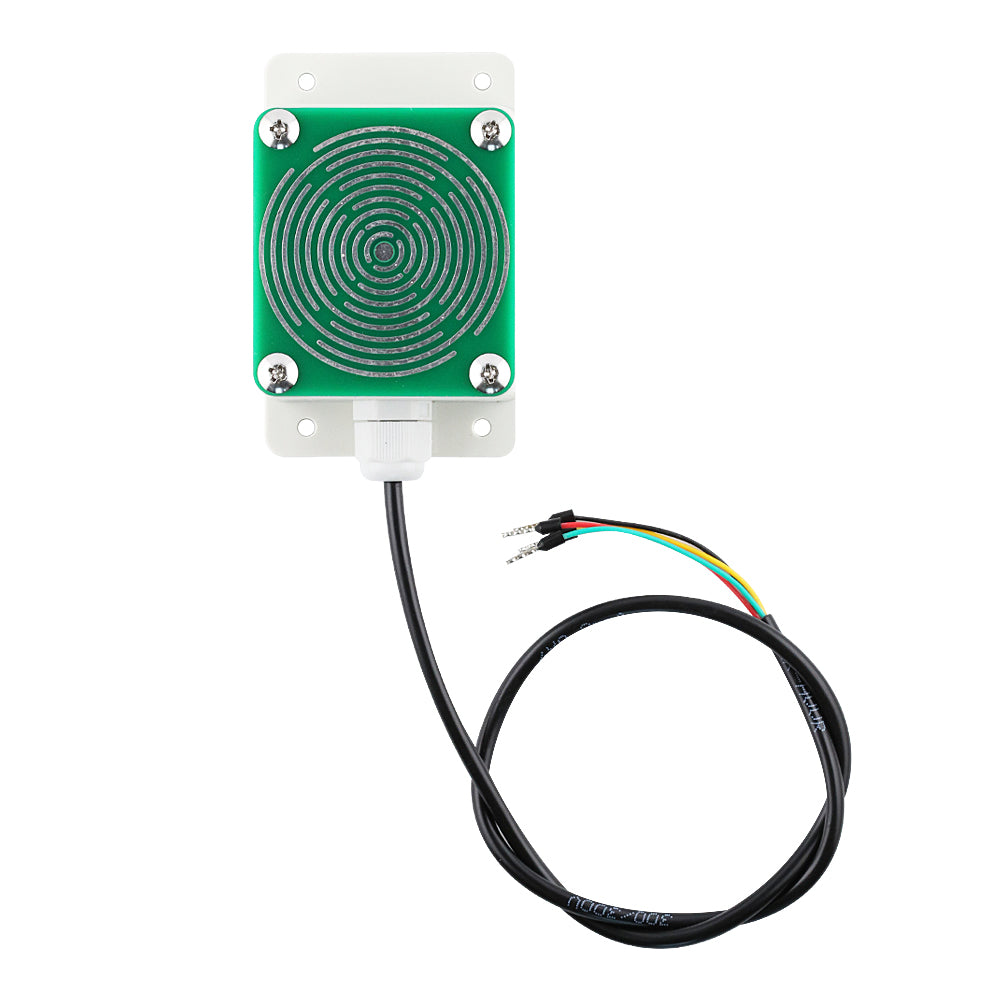

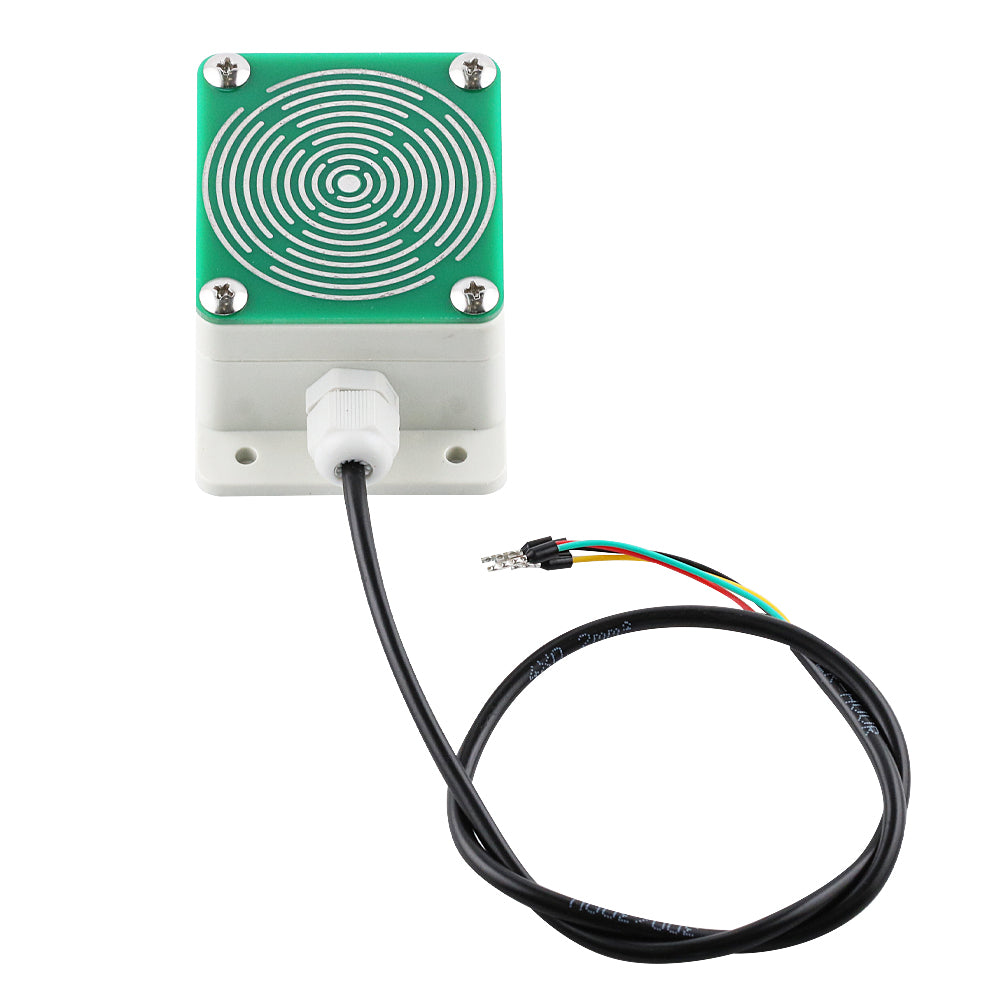

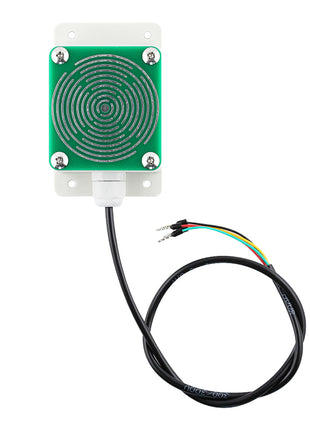

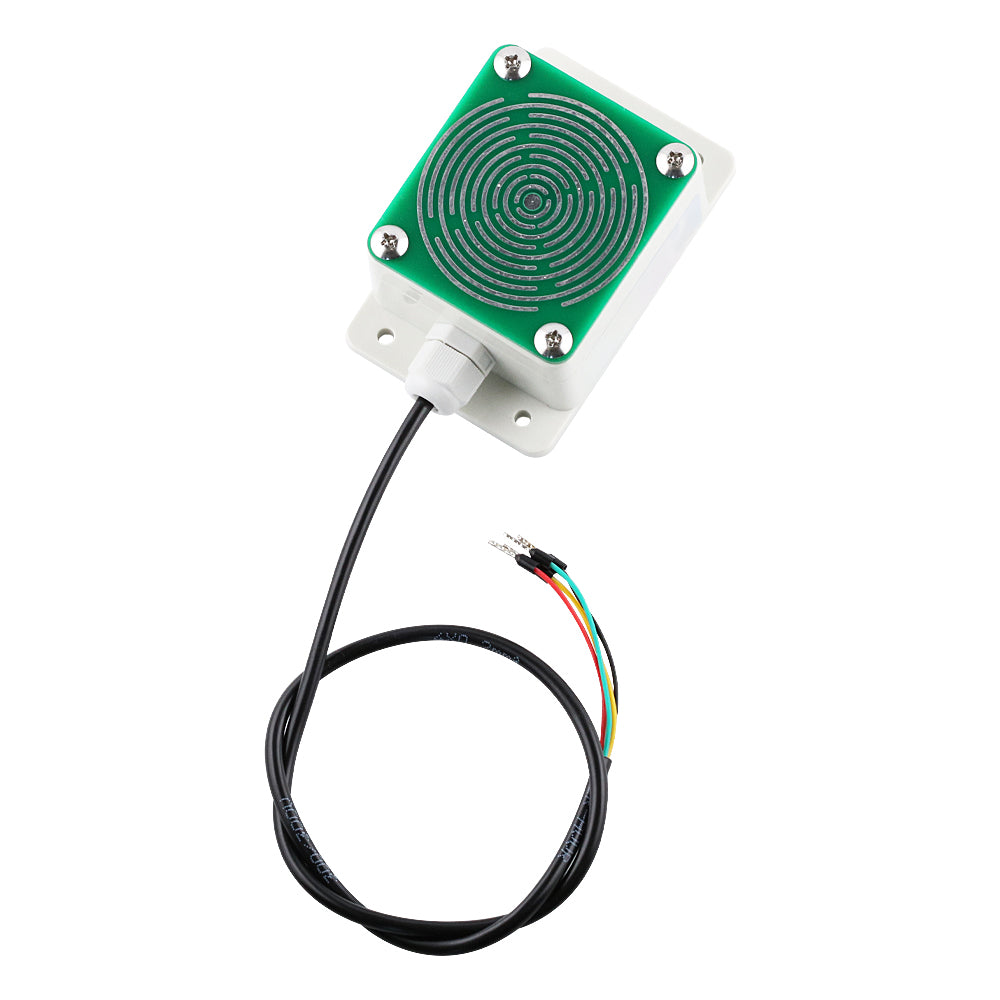

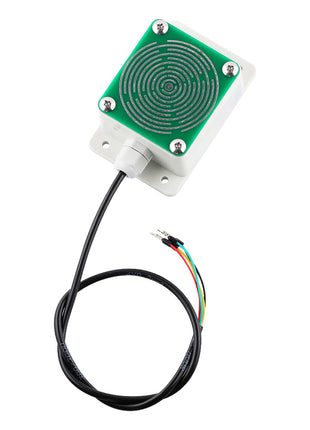

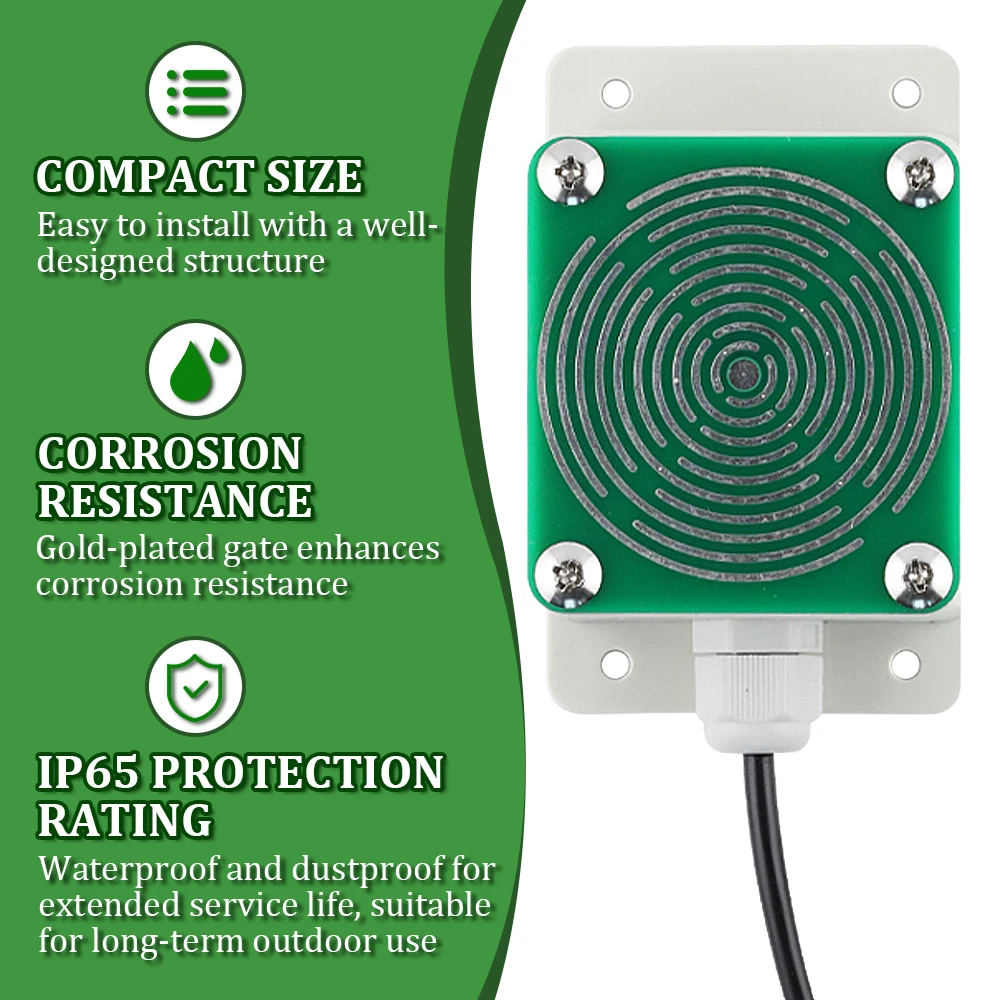

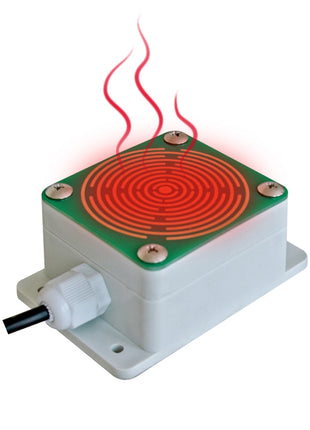

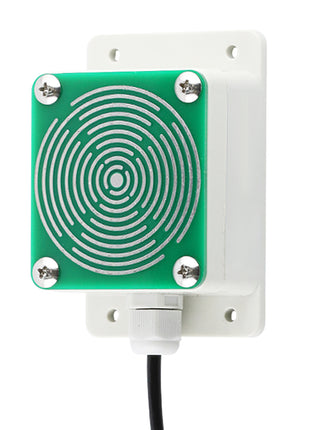

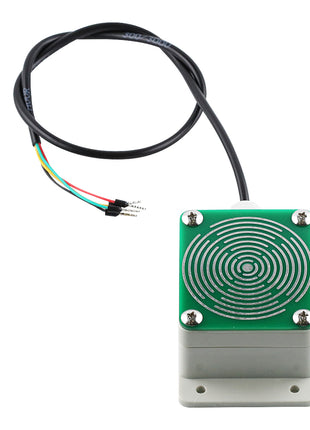

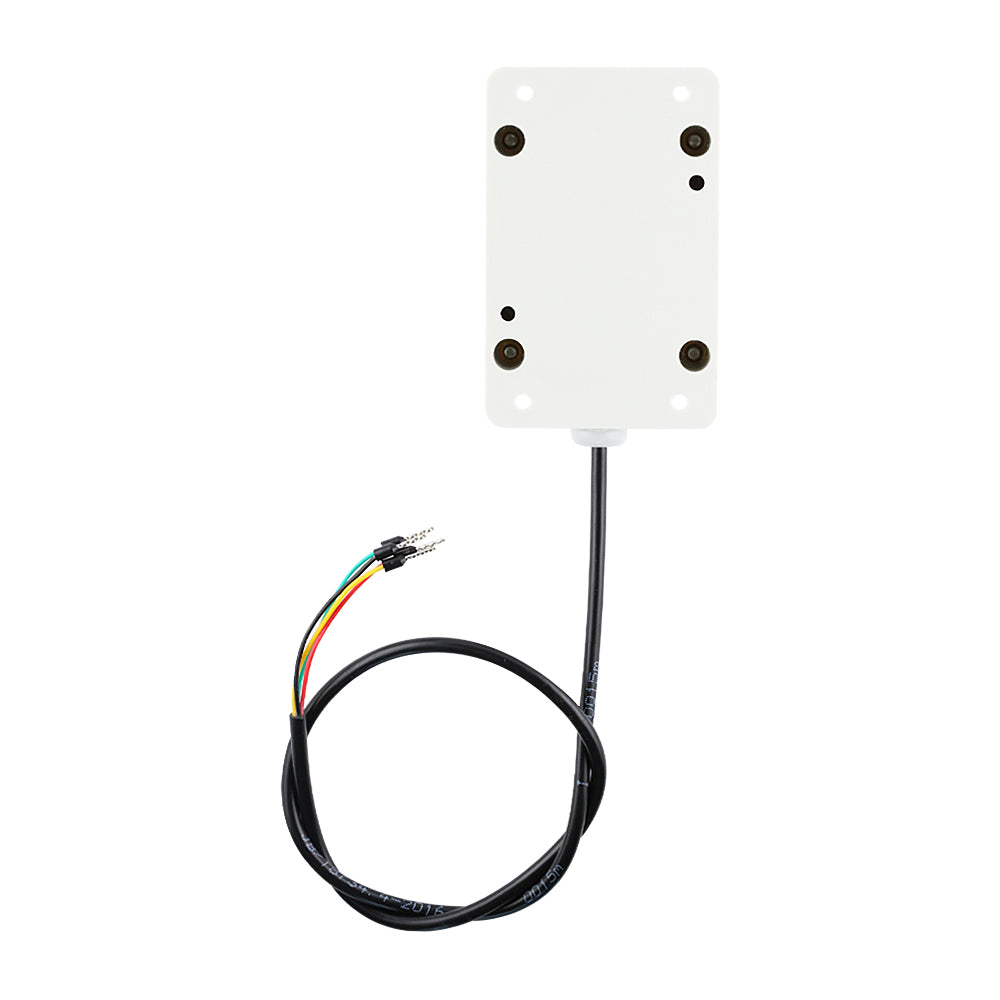

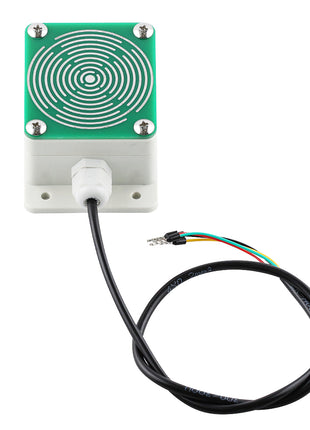

Rain and Snow Sensor Transmitter Weather Induction Detection Heating Anti-icing IP65 Output RS485 0-2V 0-5V 0-10V 4-20mA

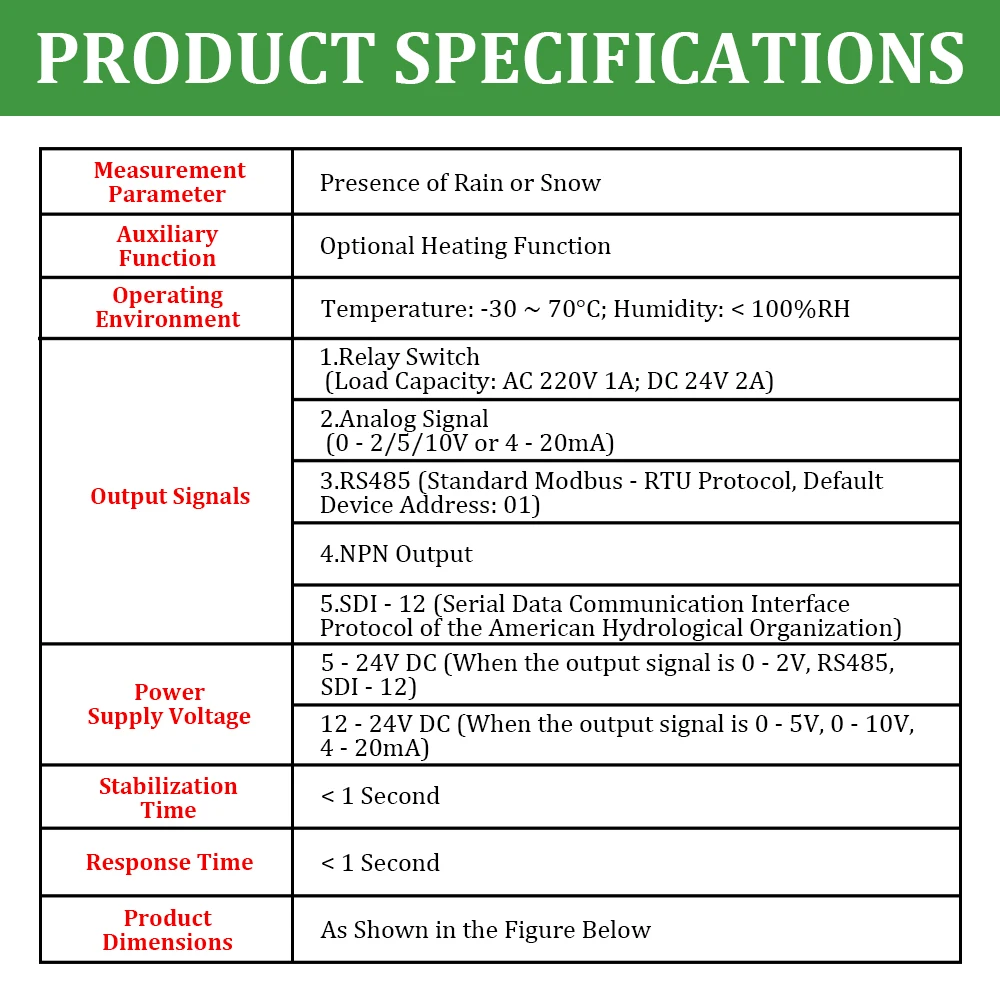

Technical Parameters

Measurement parameter: Presence or absence of rain and snow

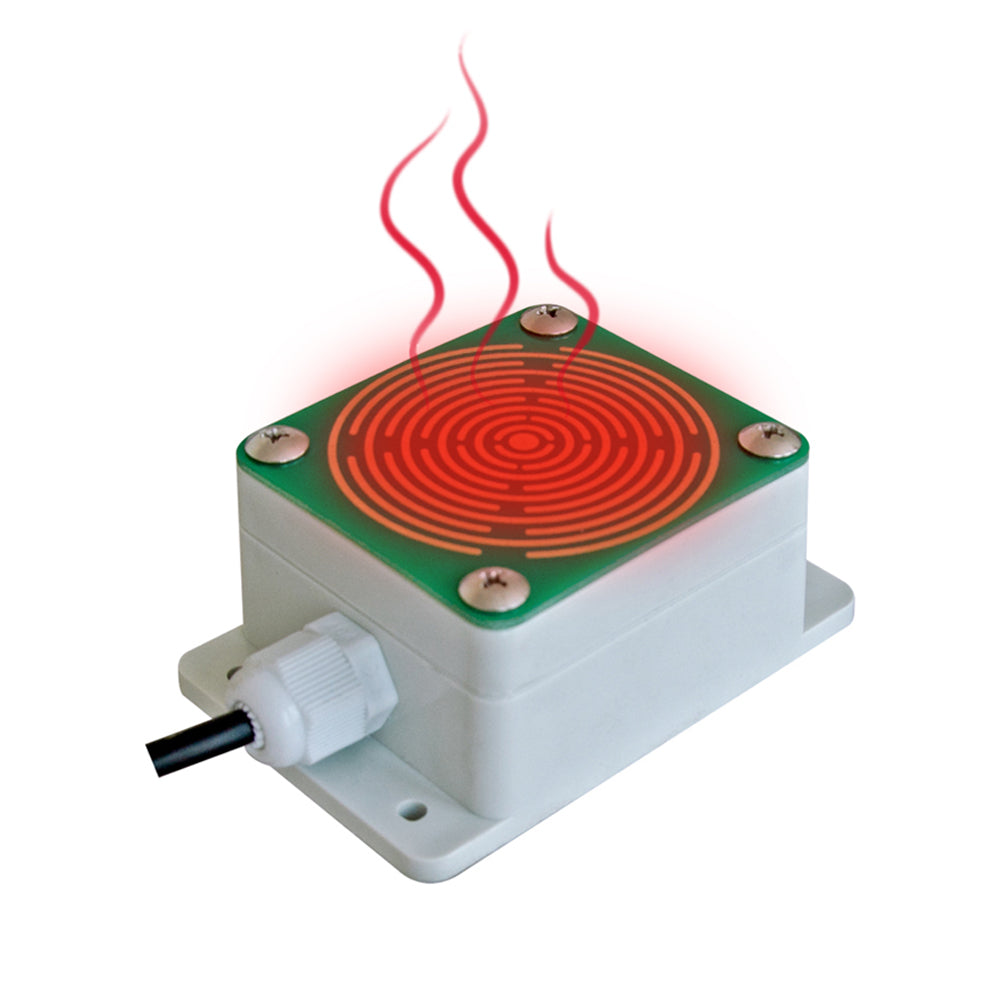

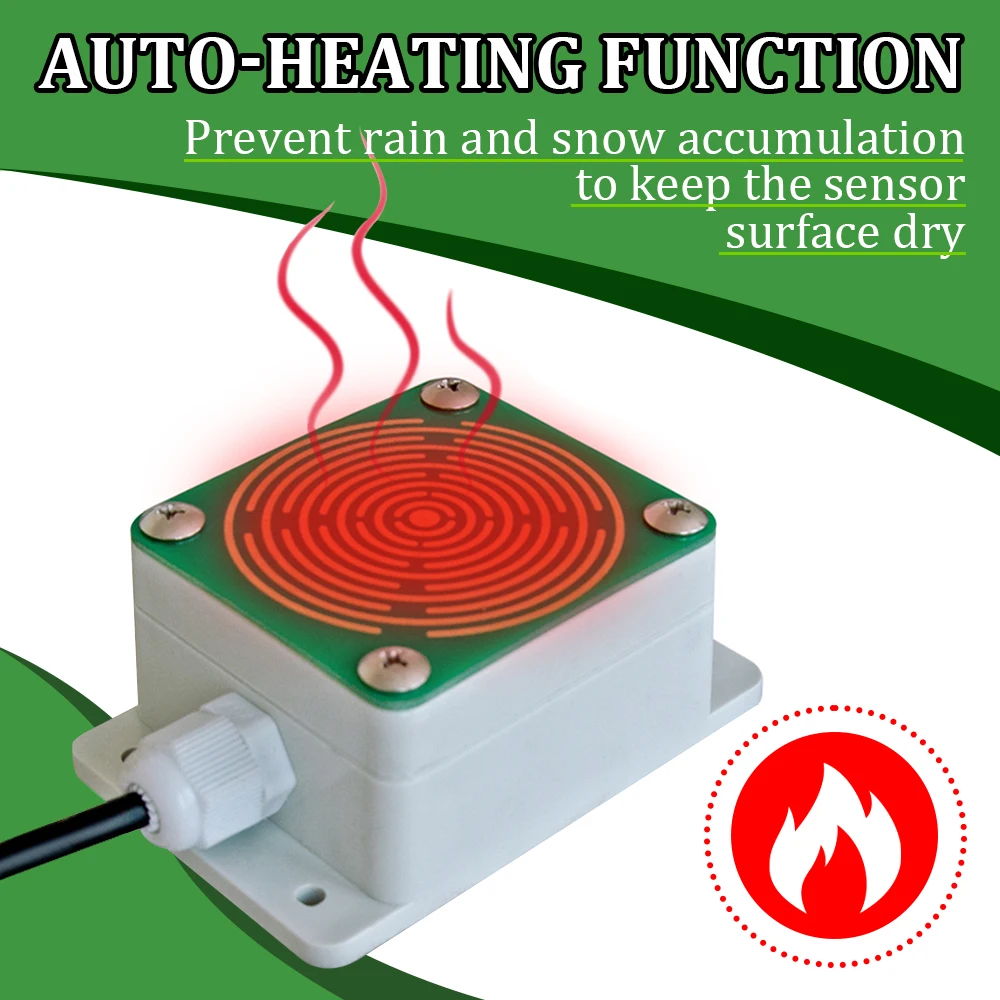

Auxiliary function: Optional heating function

Operating temperature:－30～70℃；Humidity:10～90%RH

Storage temperature:－40～80℃； Humidity: 10～90%RH

Output signal:

A: Relay switch (Load capacity: AC 220V 1A; DC 24V 2A)

B: Voltage signal (Choose one from 0～2V, 0～5V, 0～10V)

C: 4～20mA (Current loop)

D: RS485 (Standard Modbus-RTU protocol, default device address: 01)

E: NPN output

F: Combined output: e.g., A+C+D mentioned above

Supply voltage: 12～24V DC

Stabilization time: ＜1 second

Response time: ＜1 second

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor
